1. Adjustable Pinch roller to suit different thickness materials up to 1mm.

2. Industrial precision, metal body design, exactly suit for vinyl, sticker, fabric, EVA, etc.

3. Special LED light, the users can check the cutting result more clearly even at night.

SEND INQUIRY NOW
SEND INQUIRY NOW
  • Product Details
Advantages

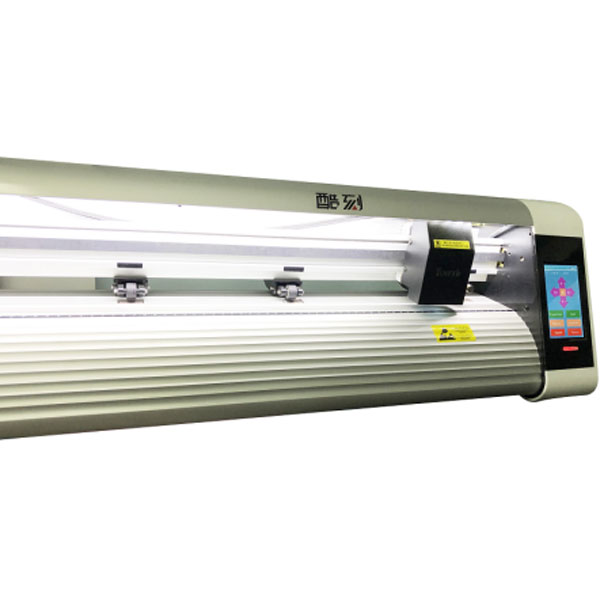

1.Large Touch Screen

①　High sensitivity
②　Simple use, straight forward operation
③　With multiple language
④　Powerful function as repeat - repeat cut the last job

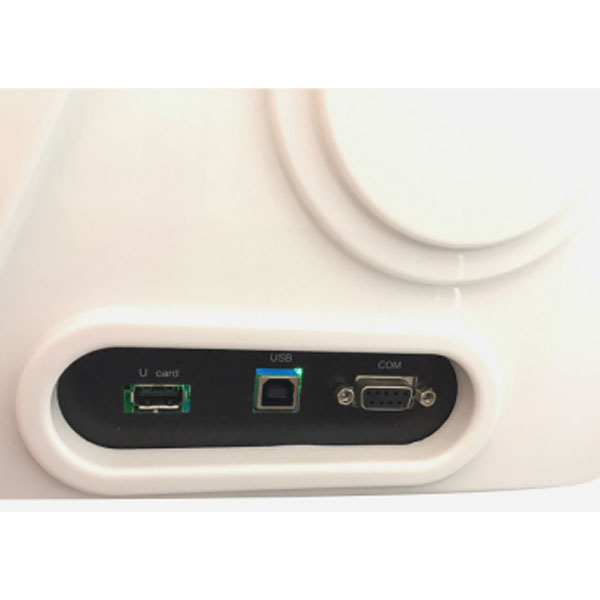

2.Multi-Interface

①　USB cable

②　U disk (Support both normal cutting and contour cutting)

③　Series cable

④　Built-in Wifi (Support to connect the Router directly )

⑤　Bluetooth (Optional)


3.Camera for Auto contour cutting

①　Built-in Real Camera for auto print & cut (Real Camera should be with circle mark “”, not angle mark “L”)

②　Support for all kinds of material , like high reflective material, colorful material, transparent material and etc.

4. Adjustable Pinch roller to suit different thickness materials up to 1mm.


5.Industrial precision, metal body design, exactly suit for vinyl, sticker,f abric, EVA, etc.

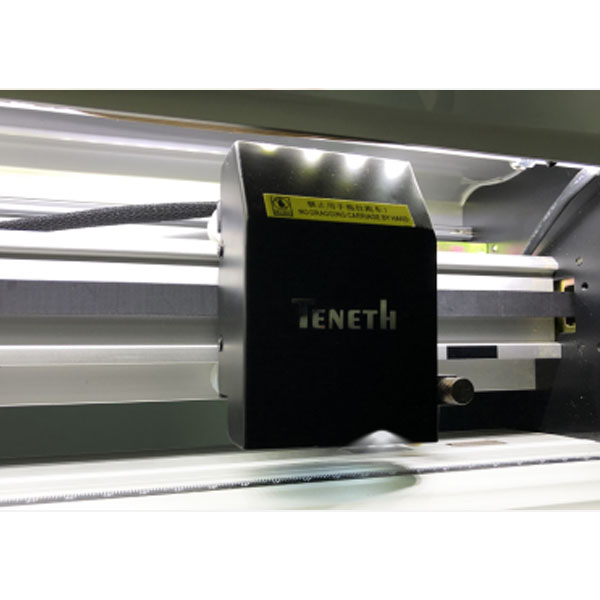

6. Special LED light , the users can check the cutting result more clearly even at night.


Specification


ModelTN-24CTN-48CTN-59C
Media wayStand OptionalFloor standFloor stand
Mainboard32 Bit Newest ARM7 CPU, 256 Mb Cache memory
Control panel4.3 inch Industrial Touch screen
DriverHigh Speed,Big power Micro Stepper motor
Max Paper feed width740mm1360mm1660mm
Max Cutting Width635mm1250mm1550mm
Cutting Force5-1000g (1000g for optional)
Cutting speed50-1000mm/s
Mechanical Precision0.025mm
Repeatable precision<0.025mm
Plotter pen11.4mm plotter pen
Plotter instructionDM-PL/HP-GL
InterfaceRS232C / USB / U flash disk/ Wifi / Bluetooth
KnifeTeneth blade (3 pcs)
Output softwareFlexisign, Corel Draw, AI ,Signcut, TenethMaster
Contour cuttingReal built-in Camera
Support systemAll windows and Mac
Package size1028*324*378mm1578*324*378mm1900*324*378mm
Gross weight28KG38KG45KG
Warranty1 Year
