1. The domestic novel integrated carriage design, strong torsion rigid structure, to ensure the verticality of the three axes to achieve the precision of die cutting higher.
2. Multi-function double heads, the machine can not only make gift boxes, but also produce labels in small batches.
3. The machine can cut A4 A3 A3+ Size material
Advantages

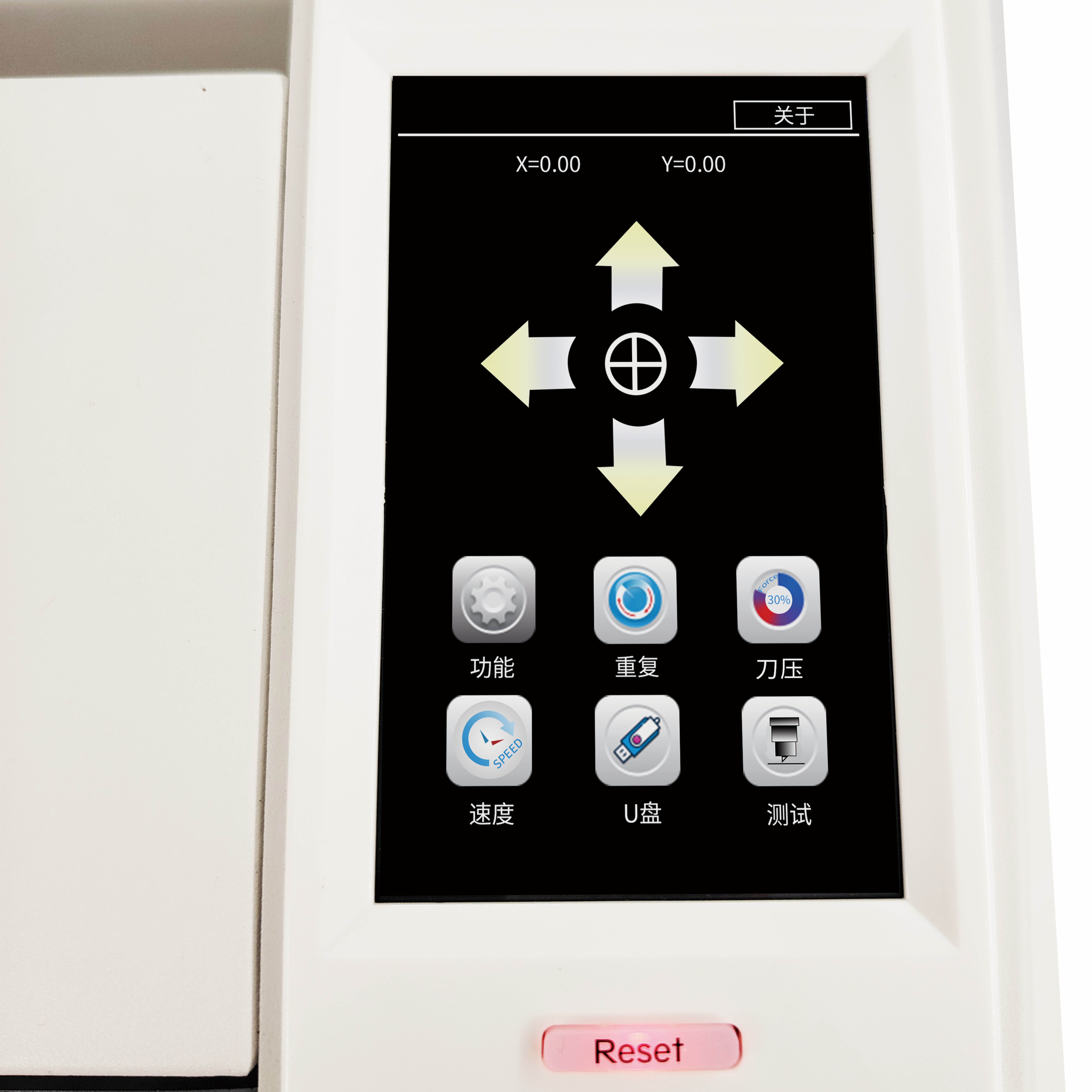

1. Full large touch screen
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job
2. High precision double steel axes
The paper feeding of the machine is accurate and error free.

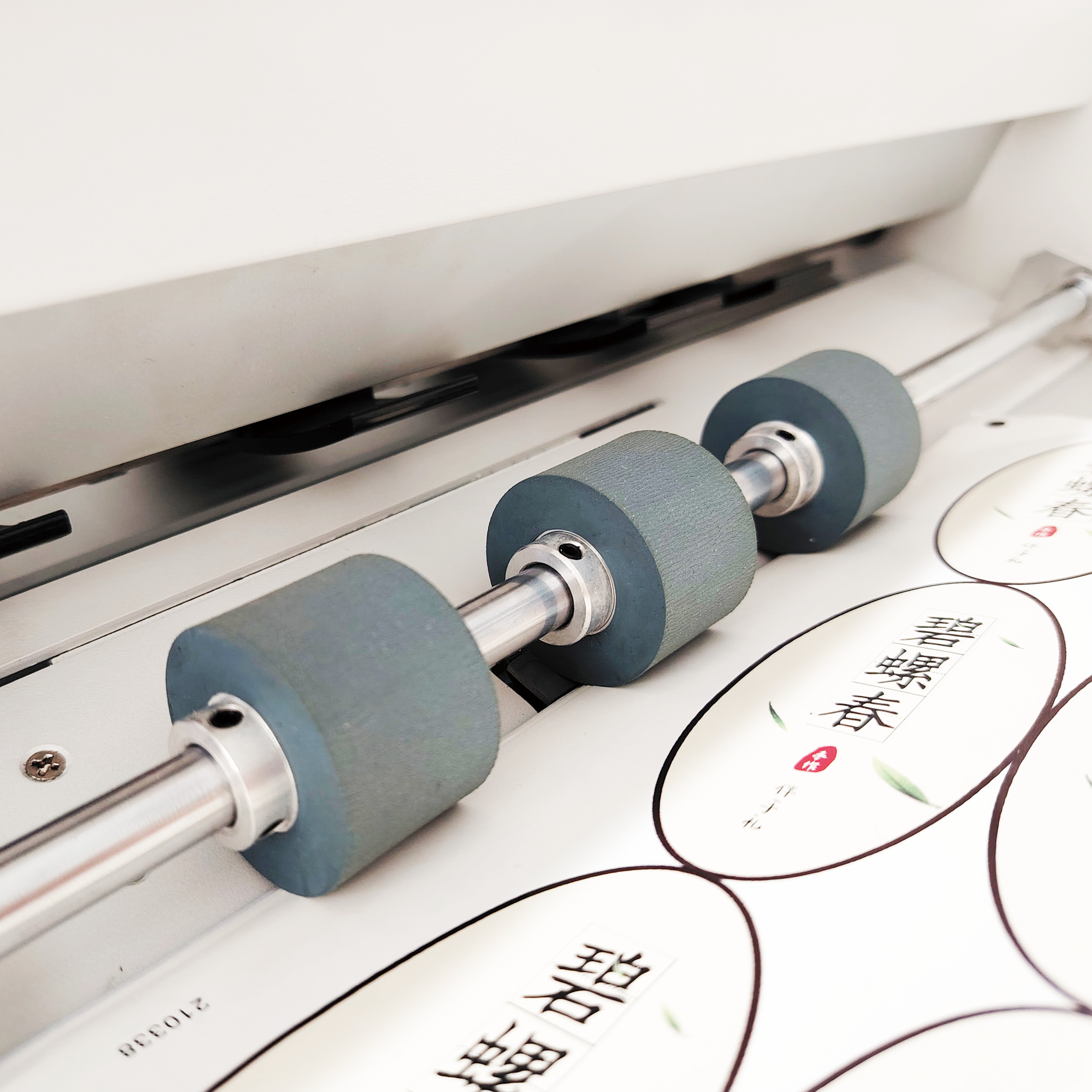

3. Paper feeding pinch roller
⑴ Bespoke
⑵ High temperature and wear resistance
⑶ Long service life

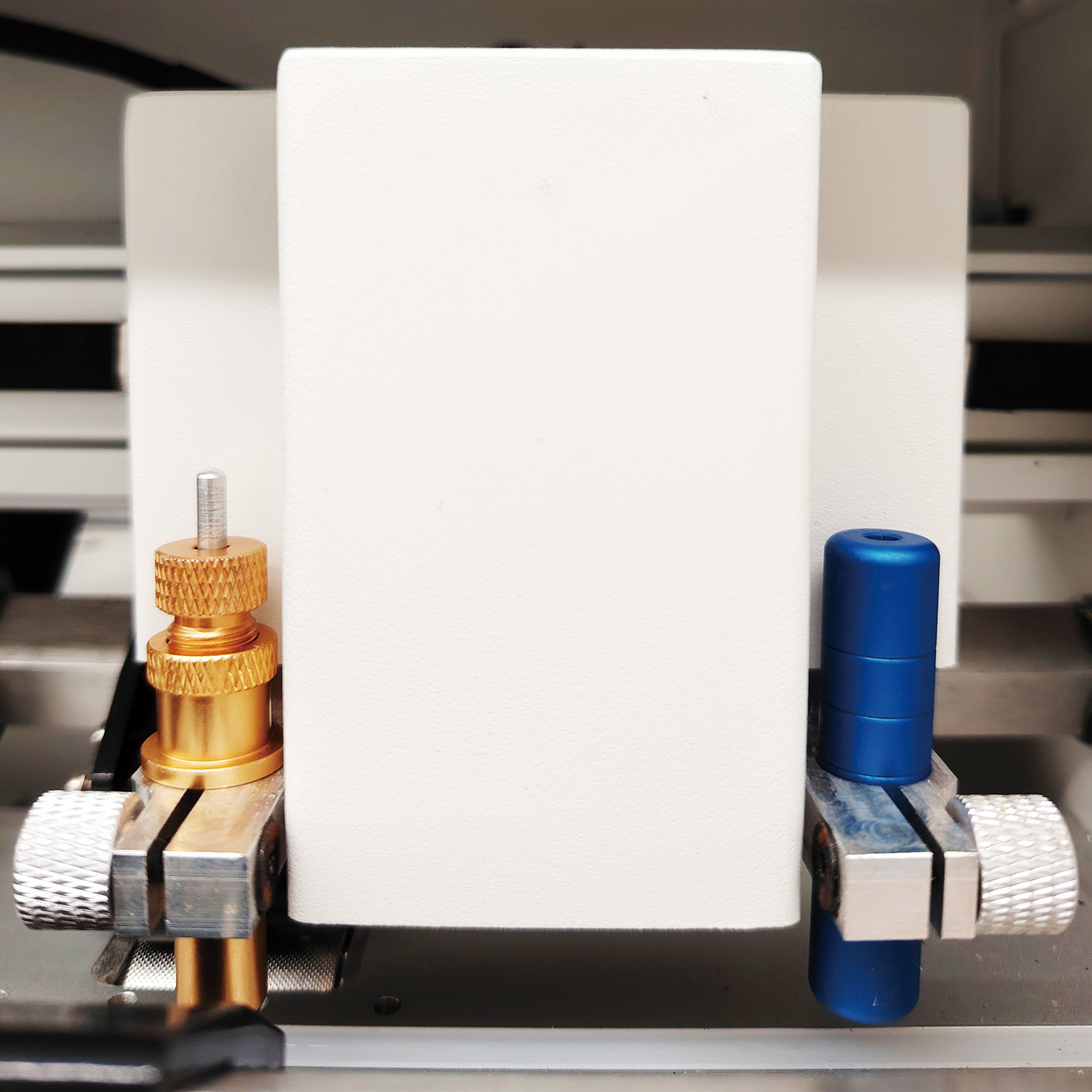

4. Double heads
(1)Used for cutting self-adhesive, cardboard,
film, sandblasting paper, reflective film
and other materials
(2) Camera scan, the function is self-correction during the work, and can scan various materials
Technical Specifications
Model | A6 |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 483*329mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <80W |
Package size | 850*450*600mm |
Gross weight | 70kg |
Warranty | 1 Year |
Description:
1. The domestic novel integrated sports car design, strong torsion rigid structure, to ensure the verticality of the three axes to achieve the precision of die cutting higher.
2. Imported high-precision integrated steel shaft, stronger grip, advanced paper feed-in device, to ensure each sheet of paper does not shift
3. X Y Double axis adopt advanced high-power servo motors to ensure provide enough power.
4. Chinese and English big LCD display, beautiful and clear, easy to operate.
5. The double-row wheels assisted paper feeding and pressing , cut smoothly, higher engraving precision.
6. The push-type receiver facilitates is better for recovery of different specifications products.
7. Fully automatic single sheet feeding, continuous splitting and cutting.
8. USB and U disk two output modes to meet different customer needs
9.CCD system, make sure zero erro and have QR code reading system
10. Double heads, can make creasing and cutting together at same job.
Application:
