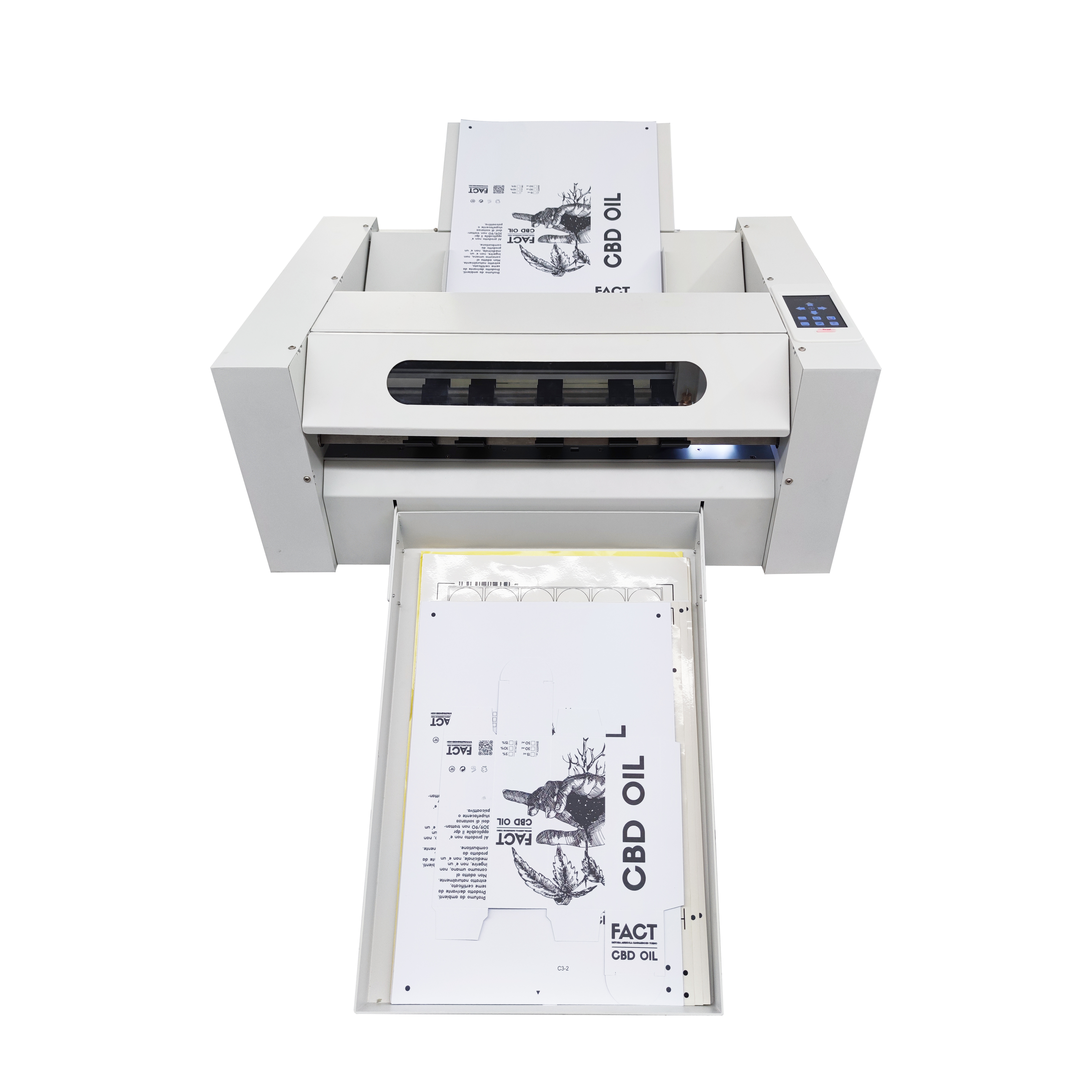

Factory Supply A3 A3+ A4 Size Camera Scan Servo Sheet Label Cutter Machine

Advantages

1. Full large touch screen

① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job

2. High precision double steel axes

The paper feeding of the machine  is accurate and error free.

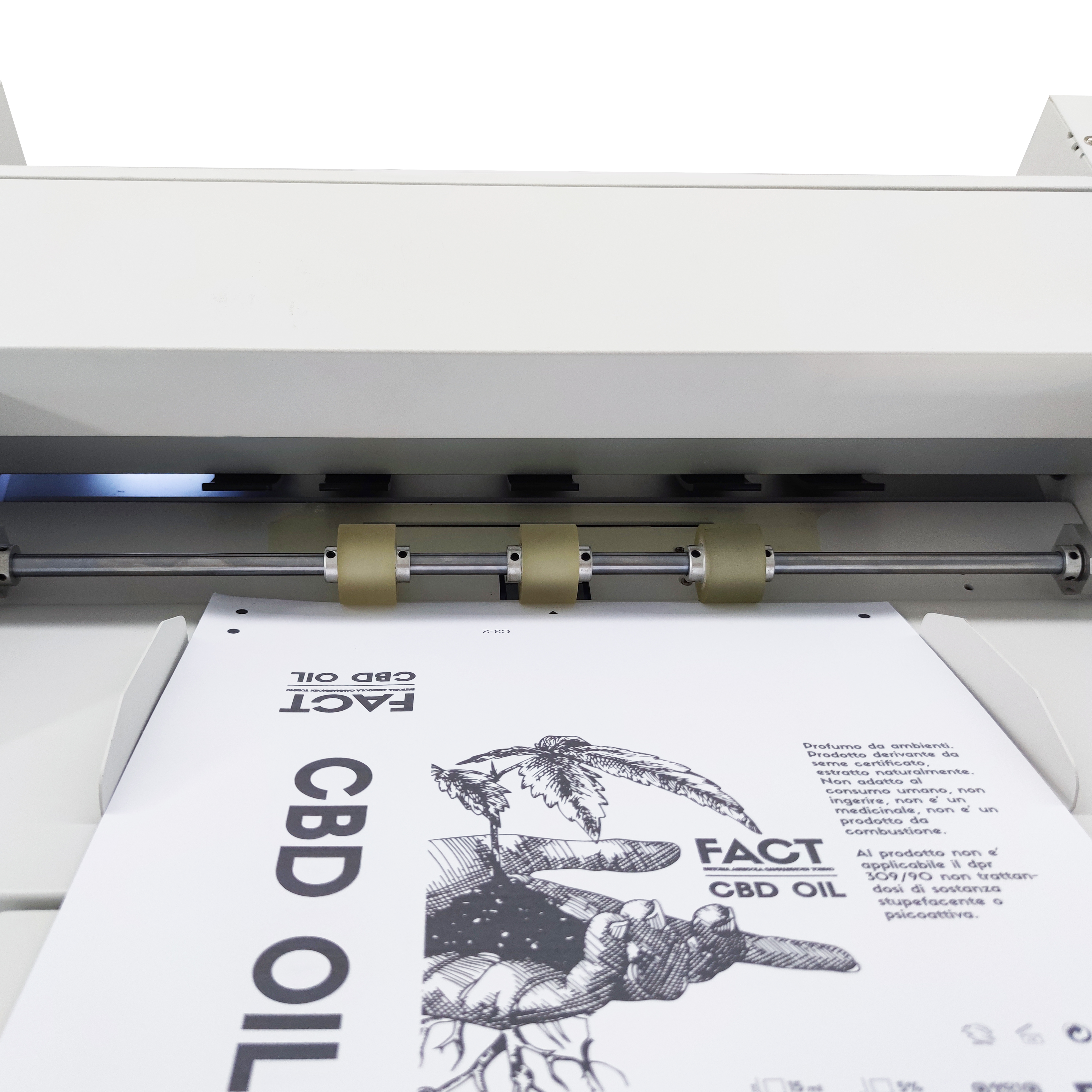

3. Paper feeding pinch roller

⑴ Bespoke

⑵ High-quality silicone paper pickup rollers to ensure no paper jams

⑶ Long service life

4. Double heads,multi-function

（1）Higher Accuracy, Faster Speed 1000mm/s（2）The camera scans the QR code, can identify different materials, and can cut different files at the same time

（3）Good for carton creasing

Technical Specifications

Model	LNS6+
Control panel	4.3 inch touch screen
Driver	High speed, big power servo motor
Maximum cutting area	483*329mm
Cutting forth	10-1000g
Cutting speed	1000mm/s
Mechanical precision	0.025mm
Repeatable precision	<+-0.025mm
Plotter pen	All types diameter 11.4mm plotter pen
Plotter instruction	DM-PL/HP-GL
Interface	USB/U disk/Serial port
Knife	Teneth imported blade
Power supply	AC220V, 50-60Hz
Power consumption	<80W
Package size	850*450*600mm
Gross weight	70kg
Warranty	1 Year

Ten advantages:

1.4.3 inch touchable HD screen, high sensitive,easy to operate.

2.built-in CCD camera detection, the camera scans the QR code, can identify different materials, and can cut different files at the same time.

3.Double steel axes to save materials, prevent material from slipping.

4.Adjustable paper tray to fit different size of materials,A3,A3+,A4 size are avaliable.

5.servo motor for faster and silence cutting.

6.Both kiss cut and full cut ,creasing are supported

7.Easily cut different shapes of labels .

8. The tray can hold 100 sheets of paper, continuous feeding and cutting

9. Diversified machine interface: USB, U disk, network port.
10. High-quality silicone paper pick-up roller to ensure no paper jam.

Application:

1.Full cut or half cut sticker, tag, label,vinyl material,gift box, all kinds of self-adhensive material and so on.
