Sheet Label Cutter
VR

Advantages

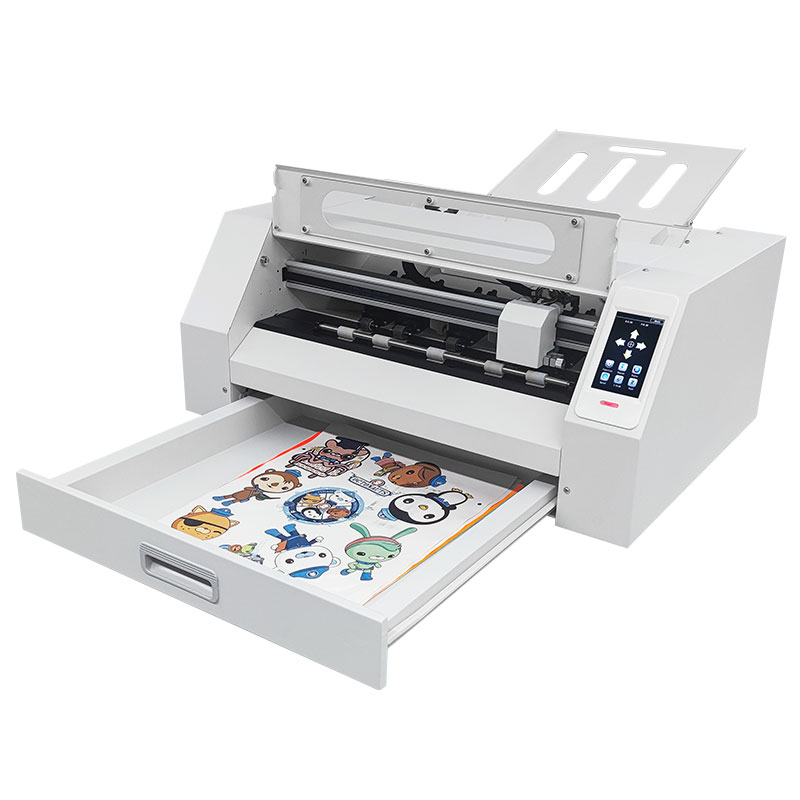

1. CCD camera sheet label cutting machine

① Drawer design,can put numerious material

② Simple use, straight forward operation
③ With multiple language
④CCD can scan various materials

2. High precision steel axes

The paper feeding of the machine  is accurate and error free.

3. Paper feeding pinch roller

⑴ Bespoke

⑵ High temperature and wear resistance

⑶ Long service life

4. Teneth imported blade

Used for cutting self-adhesive, cardboard,

film, sandblasting paper, reflective film

and other materials

Technical Specifications


Model

LNS5+

Control panel

4.3 inch touch screen

Driver

High speed, big power servo motor

Maximum cutting area

340mm

Cutting forth

10-1000g

Cutting speed

1000mm/s

Mechanical precision

0.025mm

Repeatable precision

<+-0.025mm

Plotter instruction

DM-PL/HP-GL

Interface

USB/U disk/Serial port

Knife

Teneth imported blade

Power supply

AC220V, 50-60Hz

Power consumption

<80W

Package size

870*430*770mm

Gross weight

50kg

Warranty

1 Year

Product Display




Product Application

1.Advertisement field, sign mark, sometimes use for screen printing;


2.Traffic sign,usually use vinyl and reflective sheet material;


3.Drawing for building structure or line drawing;


4.Automobile decoration shop,the plotter can cut the vehicle graphics and the solar film;


5.Glass field,cutting the sandblasting film then spray on the glass;


6.Handicraft,cutting a cardboard and then make a gift box;


7.Heat transfer,cut heat transfer film for t-shirt heat sublimation printing;


8.Indoor decoration,house decoration like wall paper or festival decoration;
