OEM & ODM producer for Phone protective film cutting machine, vinyl cutter, label cutter!
Language
OEM & ODM producer for Phone protective film cutting machine, vinyl cutter, label cutter!
1. Double heads, strong and high precision;
2. Servo mortor make it quicker, more quite;
3. Unique constant paper feeding system;
Advantages

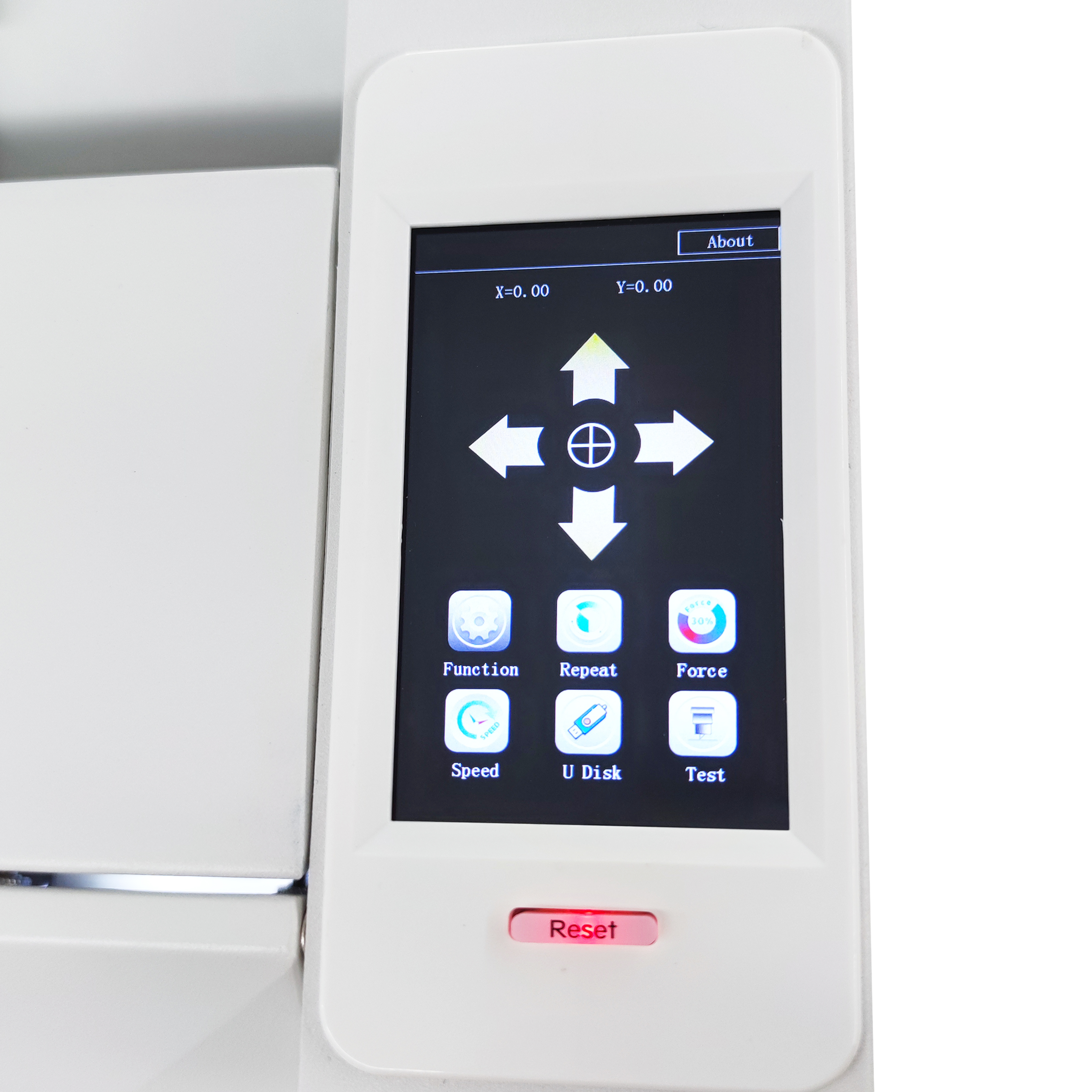

1. Full large touch screen
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job
2. High precision double steel axes
(1)The paper feeding of the machine is accurate and error free.

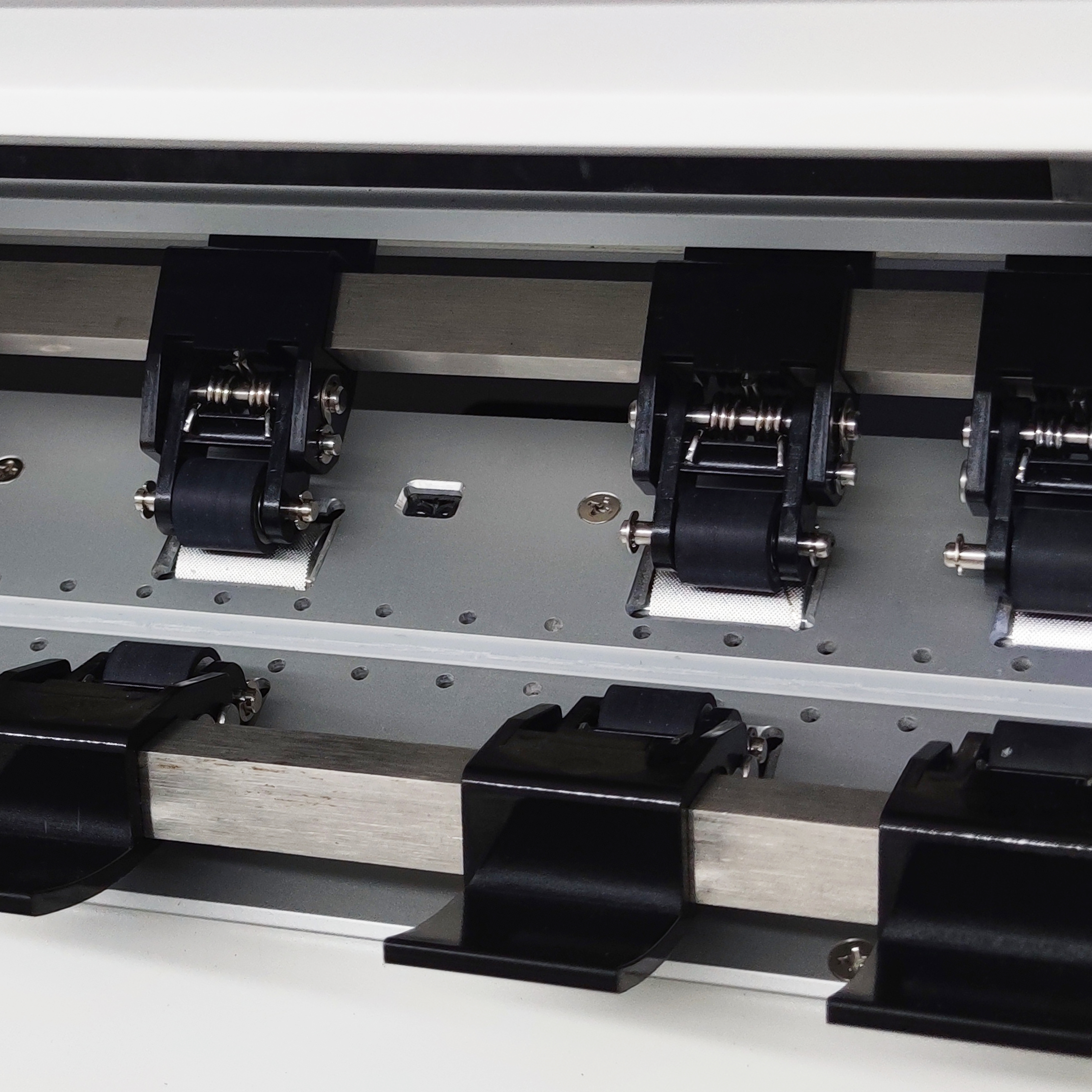

(2)Imported pinch rollers, make sure no wheel indentations on the job

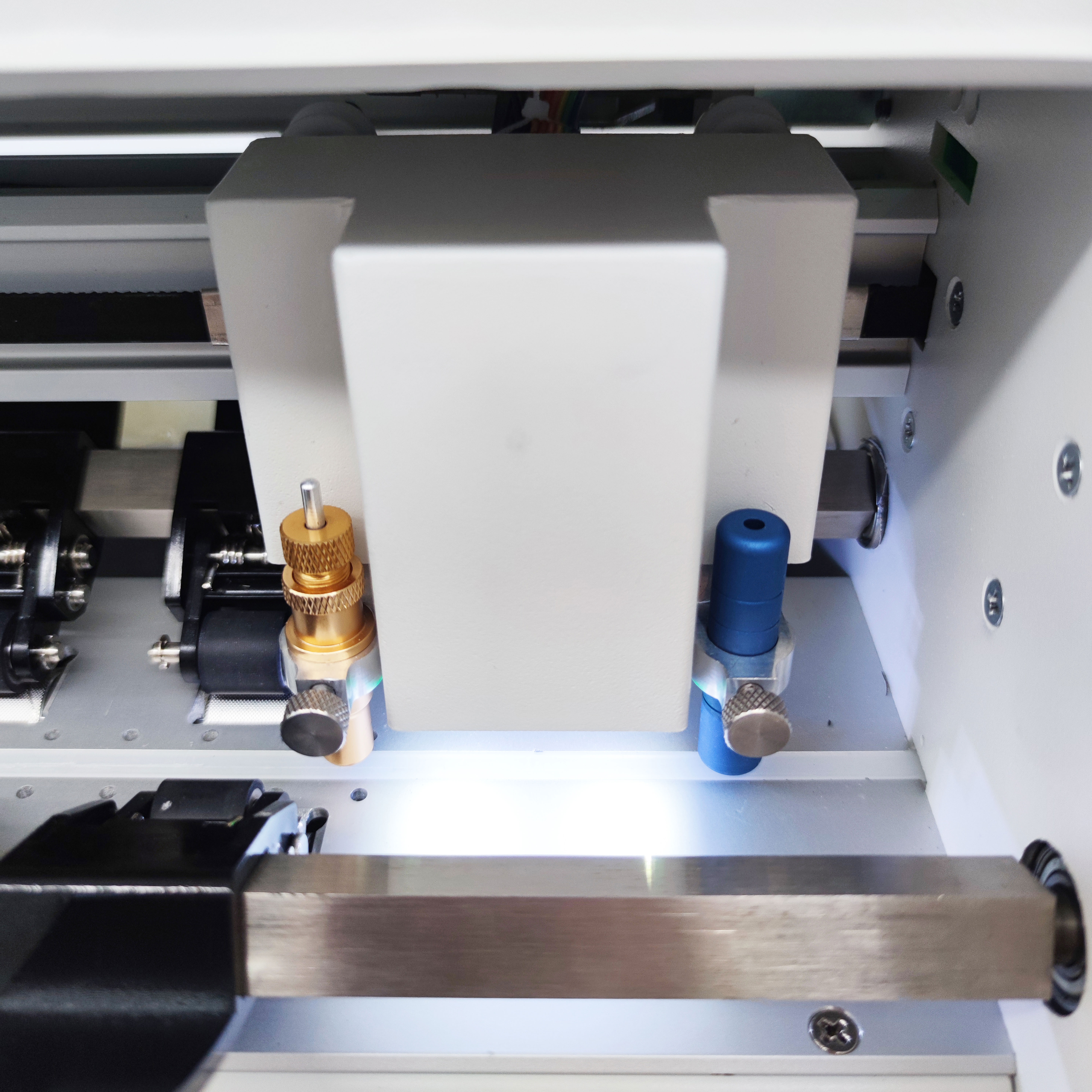

3. Double heads
⑴ One is for cutting,another is for creasing
⑵ With camera scan,can scan various materials
⑶ High precision, is 0.1mm

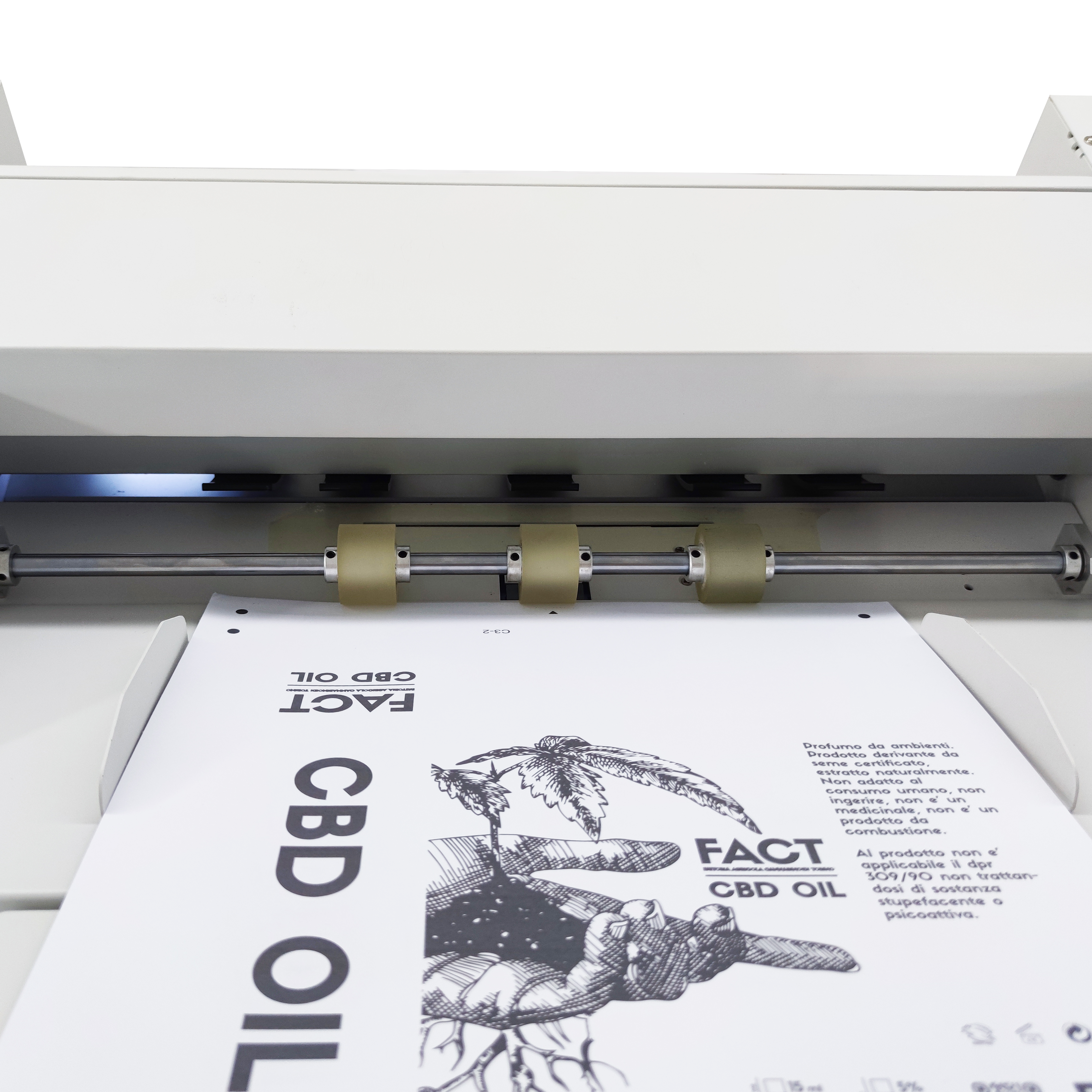

4. High quality rubber feeding wheel
Make sure the paper goes in smoothly
Technical Specifications
Model | LNS6+ |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 350mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <80W |
Package size | 850*450*600mm |
Gross weight | 60kg |
Warranty | 1 Year |
