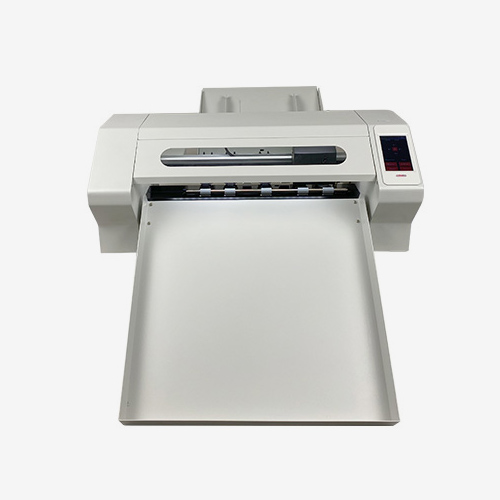

ZNS3+ is ideal for reliable and automatic small batch production and DIY business.
This label die cutting machine can do continuous contour-cutting job on various printable self-adhesive stickers and labels, great choice of copy shops, graphic shops, office applications and many others.

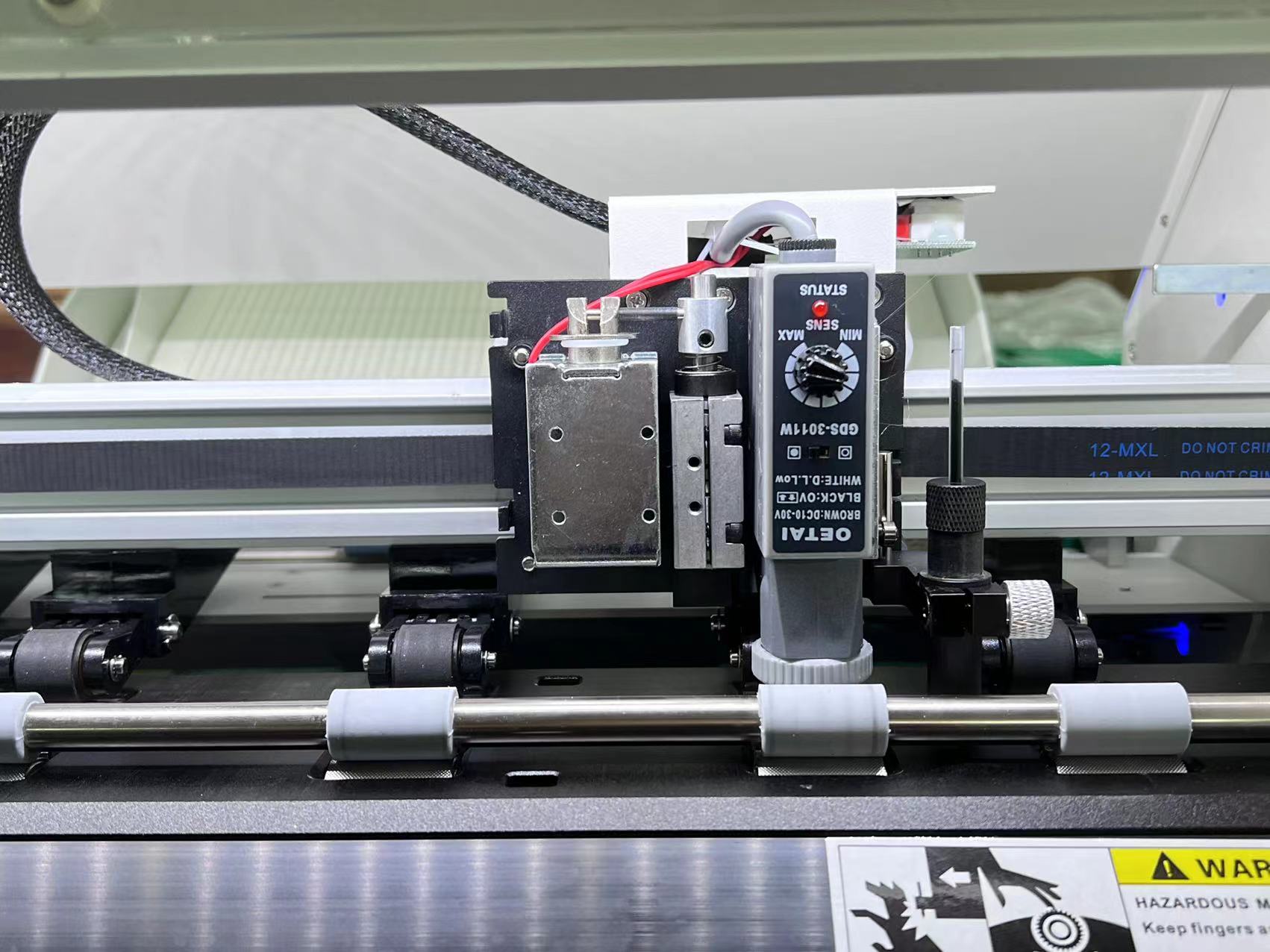

Equipped with a high-resolution CCD camera, the label die cutter can easily read a unique QR-code at the beginning of each sheet, thus, sheets with different cut jobs can be mixed.
Advantages
1. Servo motor
① control the speed
② the position accuracy is very accurate.
③ cutting supersilence

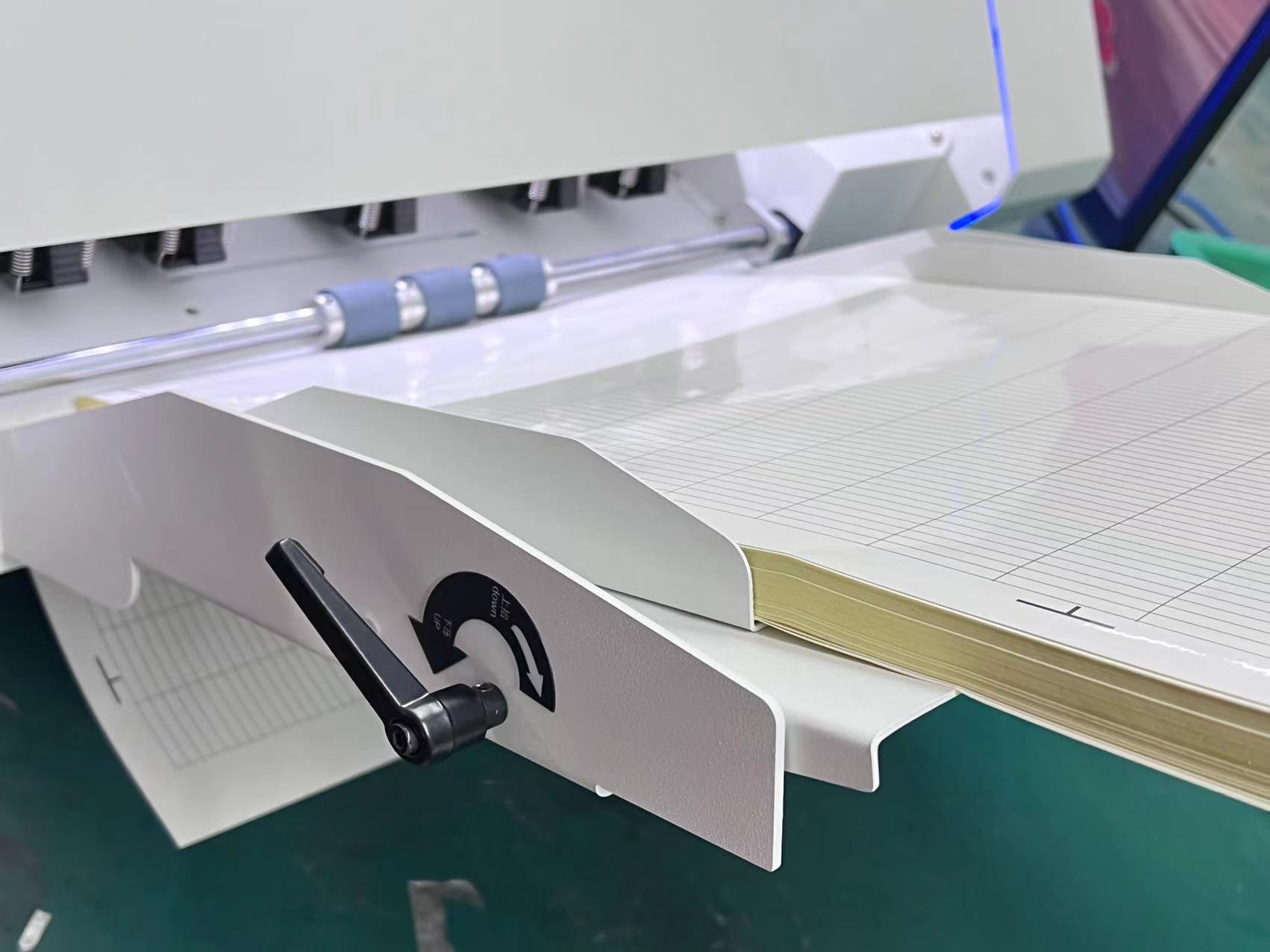

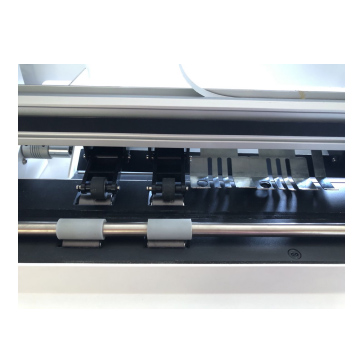

2. Double roller
Double roller is to save material and stablize the material.

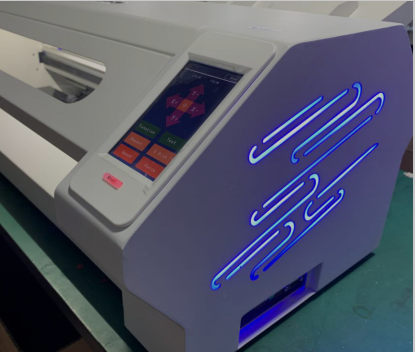

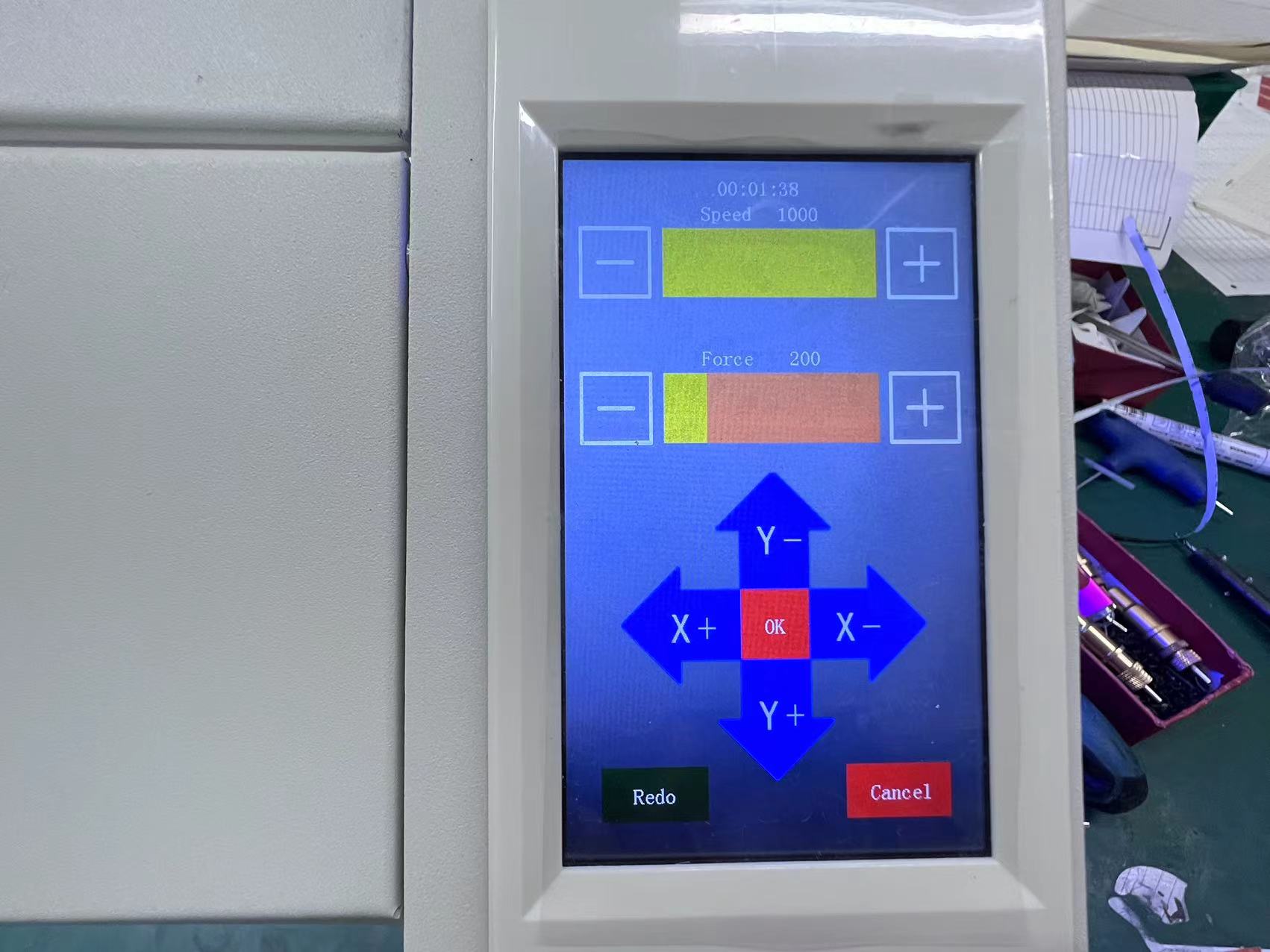

3. 4.3 inch full touch screen
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job
4. Teneth imported blade
Used for cutting self-adhesive, cardboard,
film, sandblasting paper, reflective film
and other materials
Technical Specifications
Model | ZNS3+ |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 483*329mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <80W |
Package size | 820*720*380mm |
Gross weight | 45kg |
Warranty | 1 Year |
