OEM & ODM producer for Phone protective film cutting machine, vinyl cutter, label cutter!
1.4.3 inch touchable HD screen, high sensitive,easy to operate.
2.built-in CCD camera detection, the camera scans the QR code, can identify different materials, and can cut different files at the same time.
3.Double steel axes to save materials, prevent material from slipping.
4.Adjustable paper tray to fit different size of materials,A3,A3+,A4 size are available.
5.servo motor for faster and silence cutting.
6.Both kiss cut and full cut ,creasing are supported
7.Easily cut different shapes of labels .
8. The tray can hold 100 sheets of paper, continuous feeding and cutting
9. Diversified machine interface: USB, U disk, network port.
Advantages

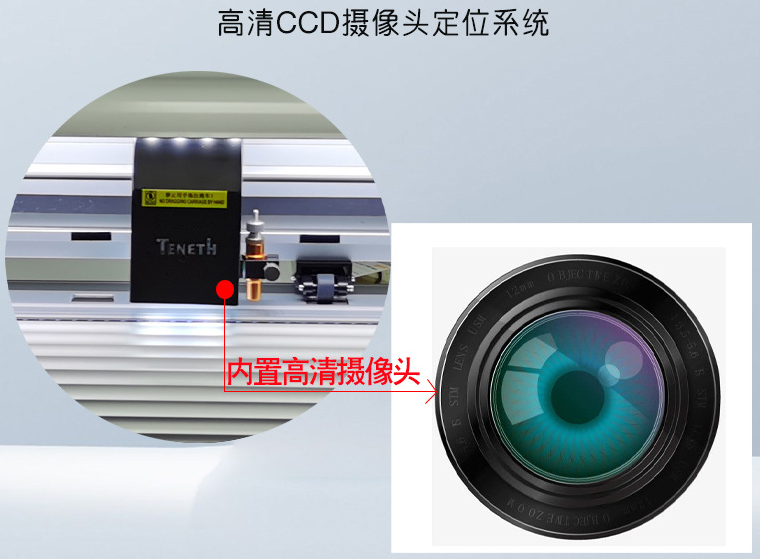

1. Camera system
① High sensitivity
② It can scan various materials
2. High precision steel axes
The paper feeding of the machine is accurate and error free.
3. Paper feeding pinch roller
⑴ Bespoke
⑵ High temperature and wear resistance
⑶ Long service life
4. Teneth imported blade
Used for cutting self-adhesive, cardboard,
film, sandblasting paper, reflective film
and other materials
Technical Specifications
Model | Z3PRO |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 328mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <80W |
Package size | 820*720*380mm |
Gross weight | 45kg |
Warranty | 1 Year |
Application:
