Automatic contour Cutting Plotter
VR

Advantages

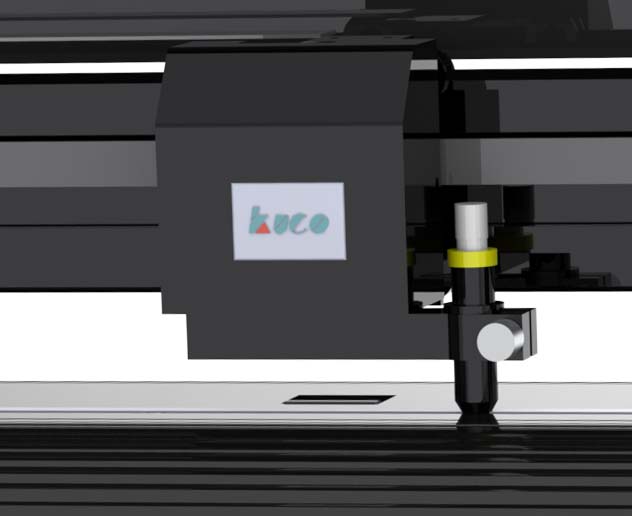

1. Stronger carriage

It can control the cutting accuracy


2. High precision steel axes

The paper feeding of the machine  is accurate and error free.

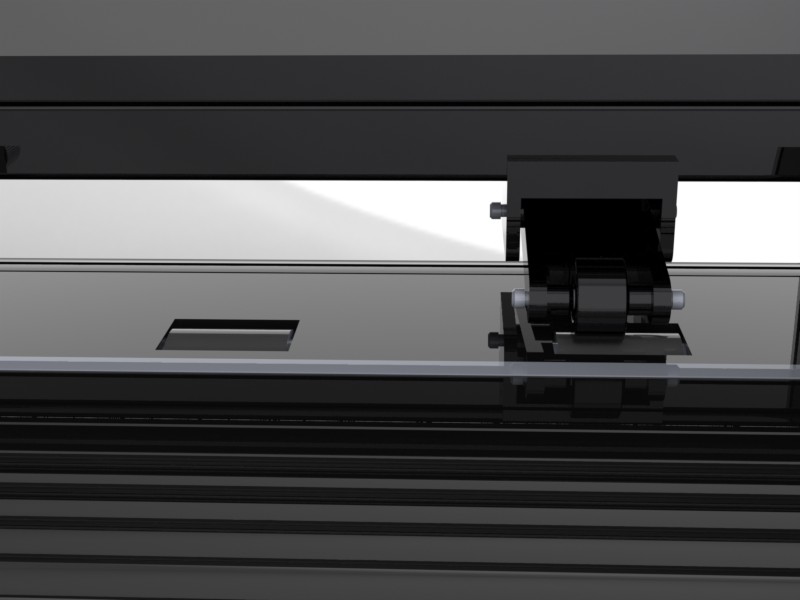

3. Paper feeding pinch roller

⑴ Bespoke

⑵ High temperature and wear resistance

⑶ Long service life

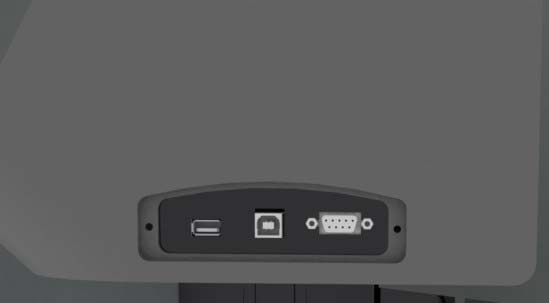

4. More interface : USB / U Disk / Serial port

3 different interface let the operation more convenient

Technical Specifications


Model

H740A

Control panel

2.4 inch touch screen

Driver

High speed, big power servo motor

Maximum cutting width

635mm

Cutting forth

10-1000g

Cutting speed

500mm/s

Mechanical precision

0.025mm

Repeatable precision

<+-0.025mm

Plotter pen

All types diameter 11.4mm plotter pen

Plotter instruction

DM-PL/HP-GL

Interface

USB/U disk/Serial port

Knife

Teneth imported blade

Power supply

AC220V, 50-60Hz

Power consumption

<80W

Package size

1030*330*380mm

Gross weight

27kg

Warranty

1 Year

Product Introduction


Features:

1.Compatible System : Artcut, Signmaster, CDR, AI, CAD, Flexi etc pattern making software .

2.Multiple interfaces : Serial port, USB, U disk (Bluetooth/ wifi optional).

3.Application : label cutting, T-shirt pattern heat transfer, wall / car sticker cutting ect.

4.High precision of cutting 2mm small fonts.

5.Optional:(1) Basket: hold the material after cut

                      (2)Bluetooth / wifi for wireless connection

6.Standard Accessories : power cable, serial cable, USB cable,signmaster software,CD driver,screws,pen holder,blade 3pcs, blade holder .
