Automatic contour Cutting Plotter
VR

Advantages


1. 11 silicon buttons+2.4inch touch screen

① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job

2.Multi-mark for automatic contour cutting

AAS can automatically detect the positioning mark points printed on the drawing file for accurate cutting


3. Paper feeding pinch roller

⑴ Bespoke

⑵ High temperature and wear resistance

⑶ Long service life

4. Teneth imported blade

Used for cutting self-adhesive, cardboard,

film, sandblasting paper, reflective film

and other materials

Technical Specifications


Model

T-24A

T-48A
T-59A

Control panel

11 silicon buttons+2.4 inch touch sceen

Driver

High speed, big power step motor

Maximum cutting area

635mm

1250mm1550mm

Cutting force

10-500g

Cutting speed

800mm/s

Mechanical precision

0.025mm

Repeatable precision

<+-0.025mm

Plotter pen

All types diameter 11.4mm plotter pen

Plotter instruction

DM-PL/HP-GL

Interface

USB/U disk/Serial port

Knife

Teneth imported blade

Power supply

AC220V, 50-60Hz

Power consumption

<80W

Package size

1060*340*400mm

1600*340*400mm1900*340*400mm

Gross weight

22kg

35kg40kg

Warranty

1 Year

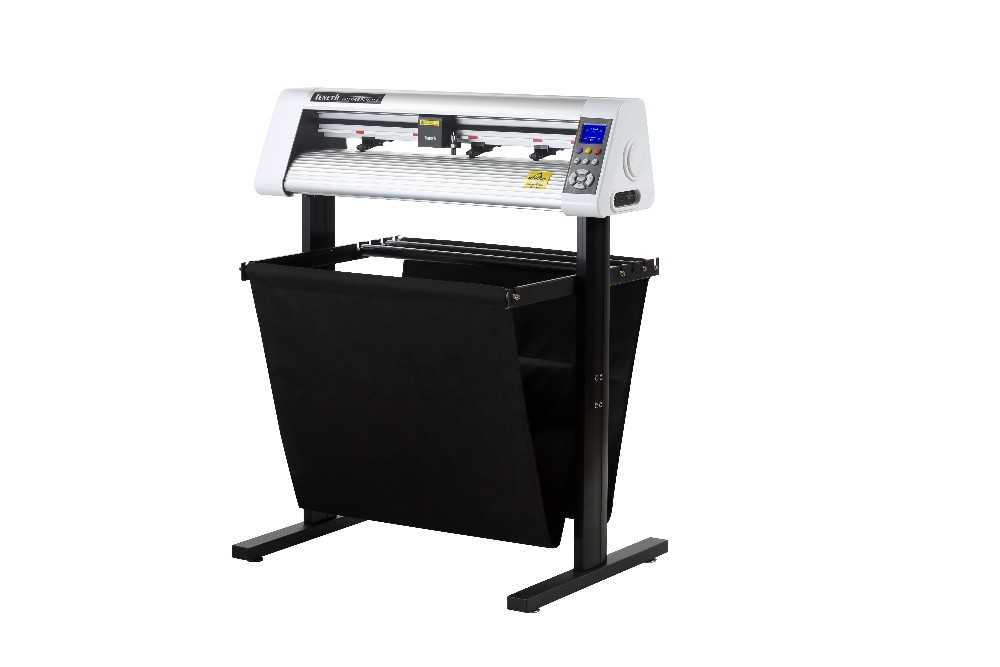

Product Display




Services:

⑴Apply to CORELDRAW、SIGNMASTER、FLEXI、ARTCUTand etc

⑵Self-contained after-sales services

⑶There is one year warranty period

⑷Free technical support

⑸Optional:
