Automatic contour Cutting Plotter
VR
  • Product Details

Advantages

1. 11silicon buttons+2.4inch touch screen

① High sensitivity
② Simple use, 5 five different keyboard backlights

③ With multiple language
④ Powerful function as repeat - repeat cut the last job

2.     Multi-interface

Multi-interface(U disk,USB,Serial port) design make personalised

3. Paper feeding pinch roller

⑴ Bespoke

⑵ High temperature and wear resistance

⑶ Long service life

4. High precision carriage

(1)Multi-Mark for Automatic contour cutting

(2)High precision 0.025mm

(3)Assisted positioning,Optical positioning

Technical Specifications


Model

T24AT48A

T59A

Control panel

11 silicon buttons+2.4inch touch screen

Driver

High speed, big power step motor

Maximum cutting area

635mm1250mm

1550mm

Cutting forth

10-500g

Cutting speed

800mm/s

Mechanical precision

0.025mm

Repeatable precision

<+-0.025mm

Plotter pen

All types diameter 11.4mm plotter pen

Plotter instruction

DM-PL/HP-GL

Interface

USB/U disk/Serial port

Knife

Teneth imported blade

Power supply

AC220V, 50-60Hz

Power consumption

<80W

Package size

1060*340*400mm1600*340*400mm

1900*340*400mm

Gross weight

24KG36KG

48kg

Warranty

1 Year

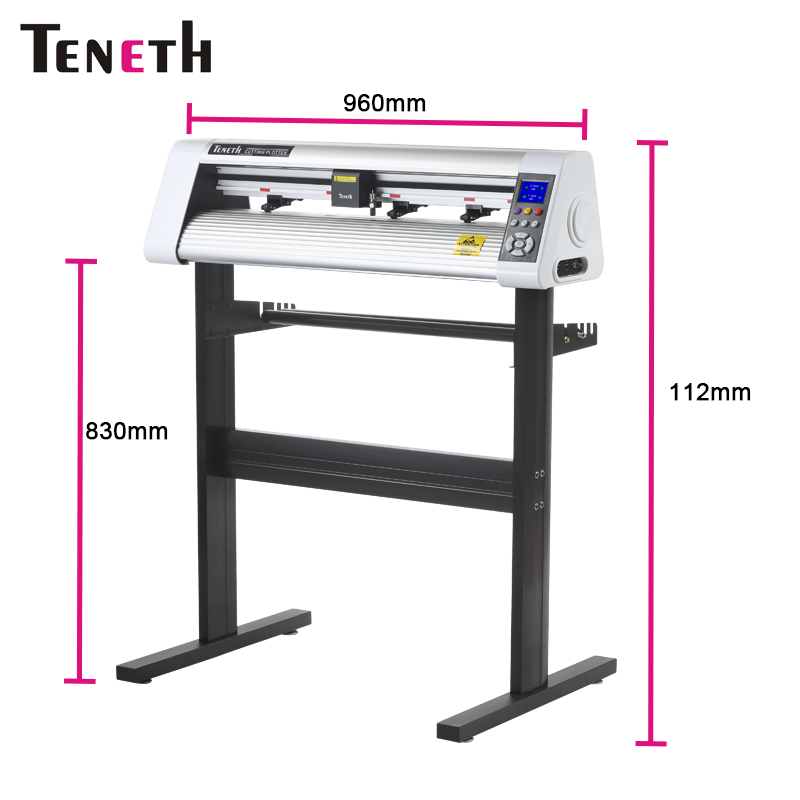

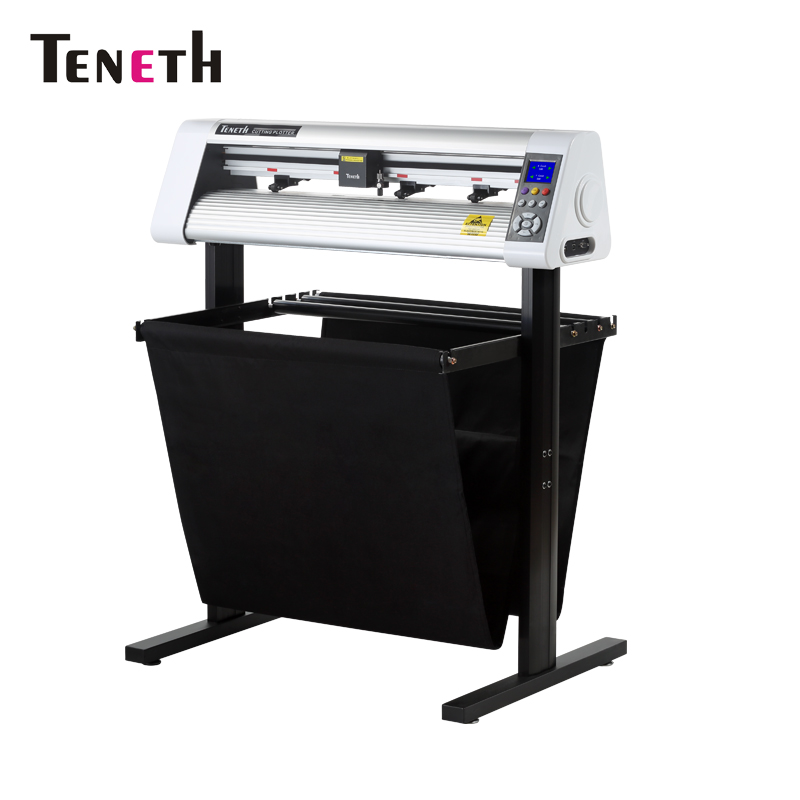

Product Display




Company Introduction
Established in the year 2012 at shenzhen, we Shenzhen Teneth Technology Co., Ltd. are a Sole Proprietorship (Individual) based company, involved as the manufacturer and supplier of Screen Protector Cutting machine, Hydrogel Film Cutter, Phone protector cutter and many more. All our offered products are thoroughly manufactured under the direction of excellence controllers using best raw material and innovative technology in adherence to quality norms. In addition, these products are strictly examined on numerous quality parameters before final dispatch. Our design and development is also focused on releasing new products on a regular basis and keeping up with the technology of the items to ensure that we remain on the edge with the latest development in terms of technology. Our warranty is our promise of the best offered to the customers at all times and therefore strive to give the longest industry warranties to ensure the customers feel and confident in the product they purchase, as it is our belief that we have the expertise to give some of the best products to our customers at a competitive price.
Product Application

1,Advertisement field,sign mark,sometimes use for screen printing

2,Traffic sign,uasully use vinyl and reflective sheet material

3,Drawing for building structure or line drawing

4.Automobile decoration shop,the plotter can cut the vehicle graphics and the solar film

5.Glass field,cutting a cardboard and then make g gift box

6.Heat transfer,cut heat transfer film for T-shirt heat sublimation printing

8,Indoor decoration,house decoration like wall paper or festival decoration
