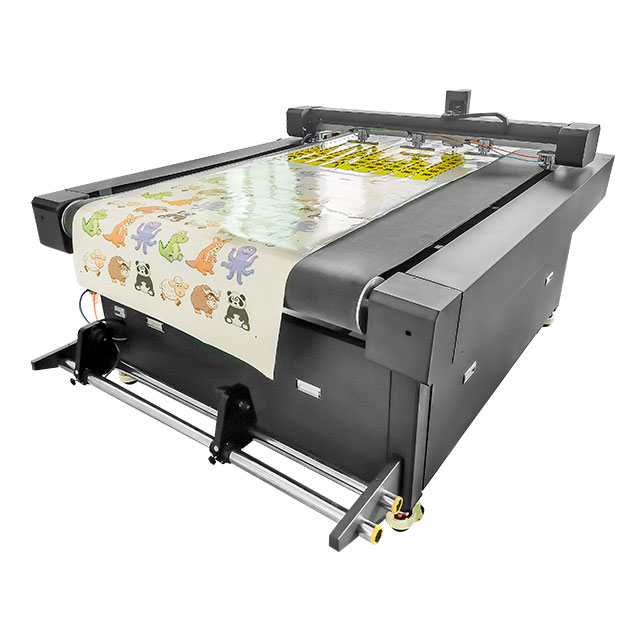

Flatbed Cutter
OEM & ODM producer for Phone protective film cutting machine, vinyl cutter, label cutter!
Language
OEM & ODM producer for Phone protective film cutting machine, vinyl cutter, label cutter!
1.servo motor ensure high accuracy, fast cutting speed and stable working performance.
2.The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
3.The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
Advantages
1. 7 inch HD touch screen
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Groove design, convenient to put some parts, such as blades, creasing tool
2. HD camera Recognition system
High quality camera can scan various materials
3. Pneumatic Pressing Device
⑴Prevent material from sliding down
⑵ The accuracy of machine is less than 0.01mm
⑶Vacuum adorpstion
4. Double carriage
Kiss cut and half cut are avaliable at the same time
Technical Specifications
Model | FC1313U |
Control panel | 7 inch HD touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 1300mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.01mm |
Repeatable precision | <+-0.01mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <2200W |
Package size | 2500*2000*1500mm |
Gross weight | 500kg |
Warranty | 1 Year |
Teneth is a leading manufacturer in the cutting industry with main product Vinyl Cutter, Screen Protector Film Cutter and label cutter. We offer completely cutting machine as well as individual component (Consumables ) which ensure that we can deliver total solution to our customers .
We were founded in 2012 and we have around 10 years of experience in what we do, our technology has proven itself in a variety of different market.
Company Application
Within 1mm material can cut, such as corrugated paper，gift box, reflective film, business card, roller vinyl material and so on
