1. Using imported reflective film blade, it can cut materials within one millimeter (crystal labels, PVC, DTF materials, heat transfer,TPU,TPH,cartons, etc.)
2. Double-headed carriage with camera function, capable of half-cutting, full-cutting, and indentation
3. Our machine adopts imported guide rail, which has high precision and long service life
4. High-grade steel wire belt, strong stretchability, and not easy to break
5. The whole machine adopts a vacuum adsorption device, which is adjusted according to the thickness of the material and the air pressure gauge. Make sure work for long distance no slip
Advantages
1. Full large touch screen
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job
2. Camera system
(1) Camera positioning tracking system, accurate and sensitive, identify cutting all kinds of shaped patterns
(2)Dual-head system for both half-cut and full-cut, creasing in the same job
3. Multifunctional interface

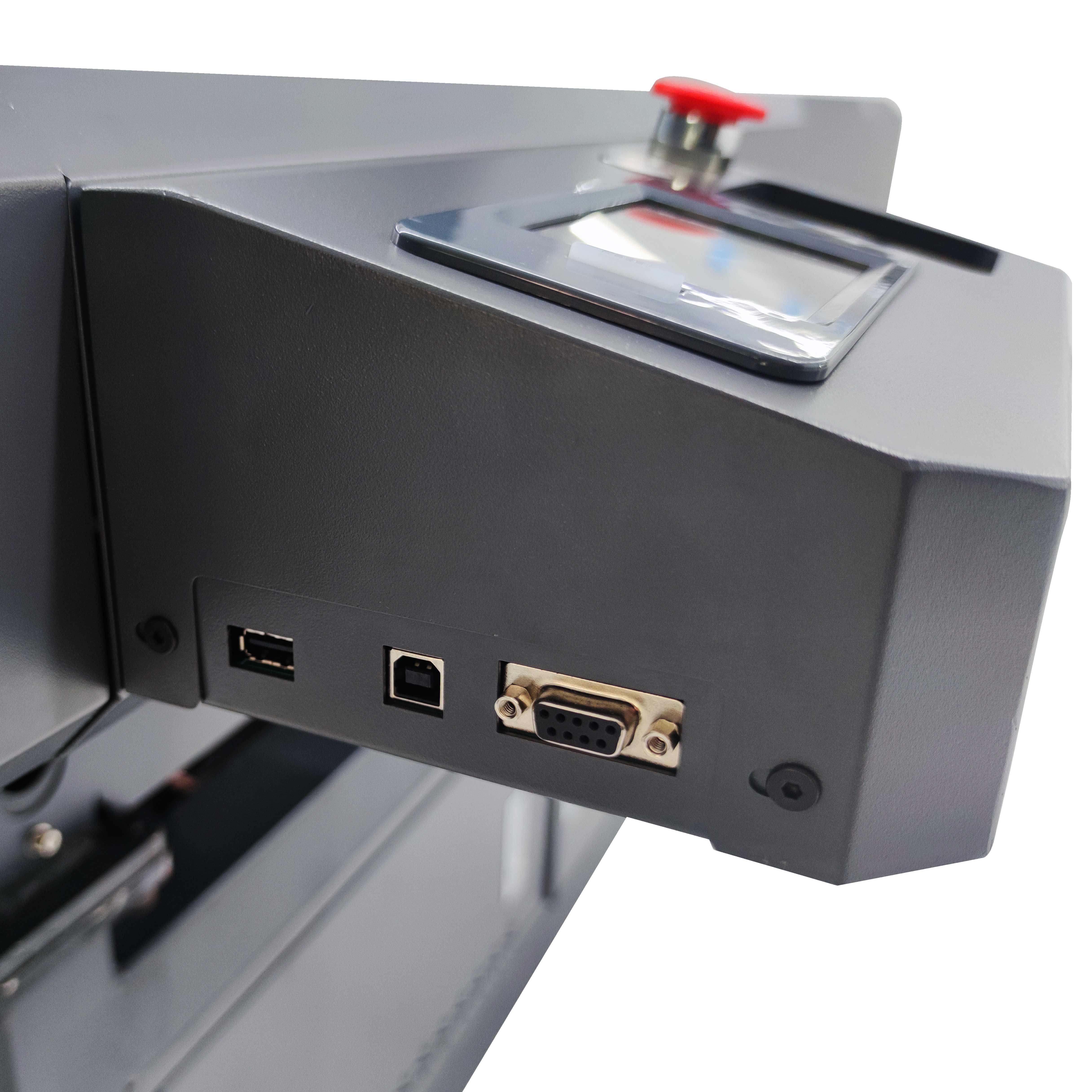

Support multi-function, U disk, USB, serial port, network port, WIFI optional

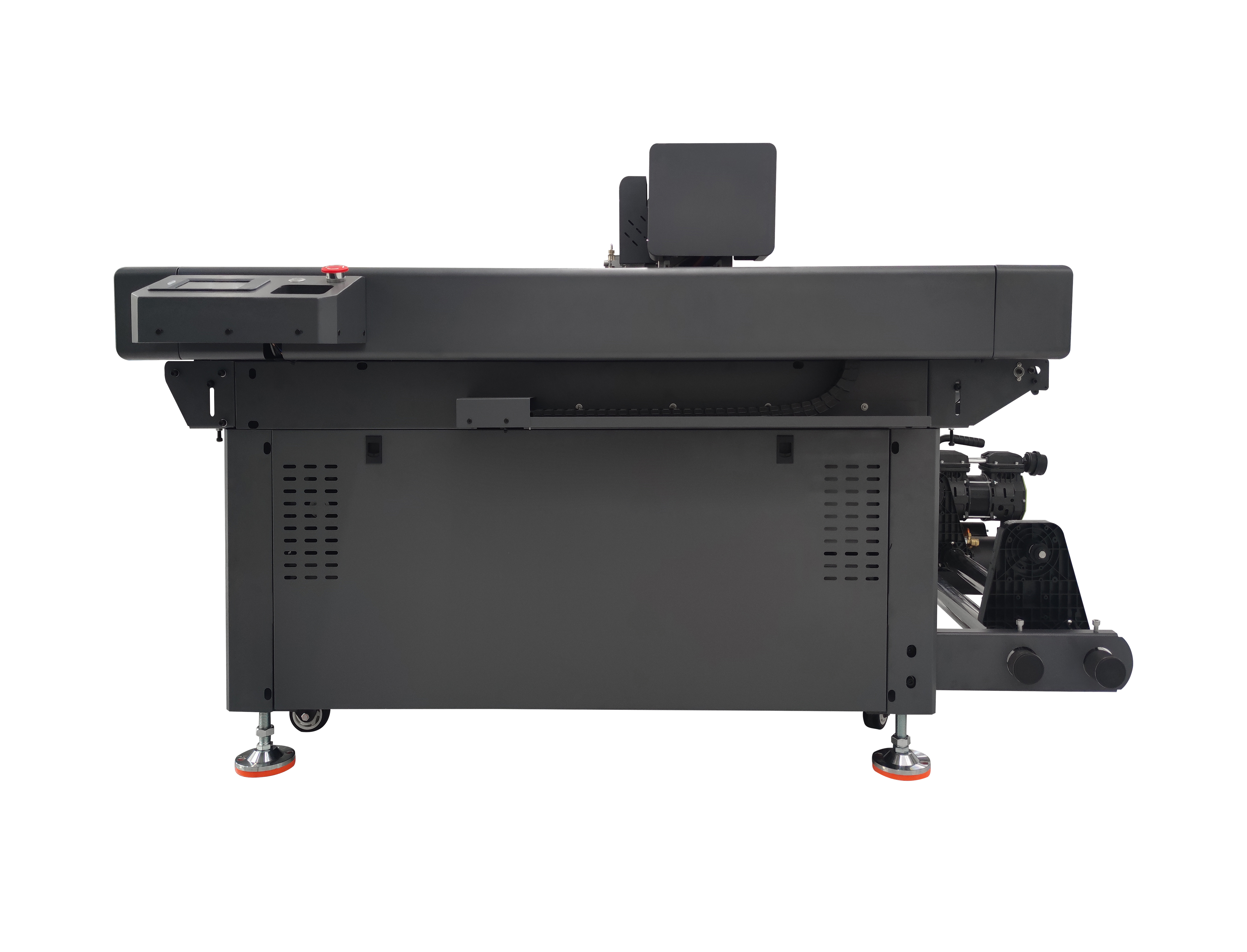

4. Automatic rewinder
Automatic pulling system saves a lot of time and manpower
Technical Specifications
Model | FC7090U |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 700*900mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port/WIFI |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <2200W |
Package size | 1700*1280*1200mm |
Gross weight | 400kg |
Warranty | 1 Year |
Function:
1. Adopt servo motor drive mode, with intelligent Al algorithm, to bring high quality experience for shaped cutting.
2.Automatic contour extraction, no need for professional operators, reduce the threshold of equipment operation.
3. Patented platform structure design, multi-zone vacuum adsorption design, low noise, strong suction power
4. LCD high-definition touch screen, so that the vision is more beautiful, more convenient control.
5. Fully expandable multiple transmission interfaces, USB, USB flash drive, Ethernet port.
6. The automatic feeding device easily achieves the perfect docking for long format cutting processing, and with the
support of the camera positioning real-time tracking system. it achieves accurate and stable contour cutting.
7. Advanced high-end multi-axis high-speed servo motion control system developed by ourselves, accurate cutting, smooth curve, high power strength to create a shocking work
8. The streamlined sheet metal body, which is designed with care and texture, is unique in the beauty of technology.
Package:
Application:
It is mainly used to cut soft media without a cutting die such as cardboard,vinyl sticker,label,PVC,PET film,PP film, reflective film, adhesive sticker ,magnetic sticker...it is an efficient solution of perforation cutting, half cutting, creasing,marking,etc
