1. The imported linear guide rail is used for transmission, with fast speed, high precision, low sound and stable quality
2. The self-developed ARM control system has excellent cutting effects.
3. Various transmission interfaces, USB, U disk, which create an efficient cutting experience in different scenarios.
Advantages

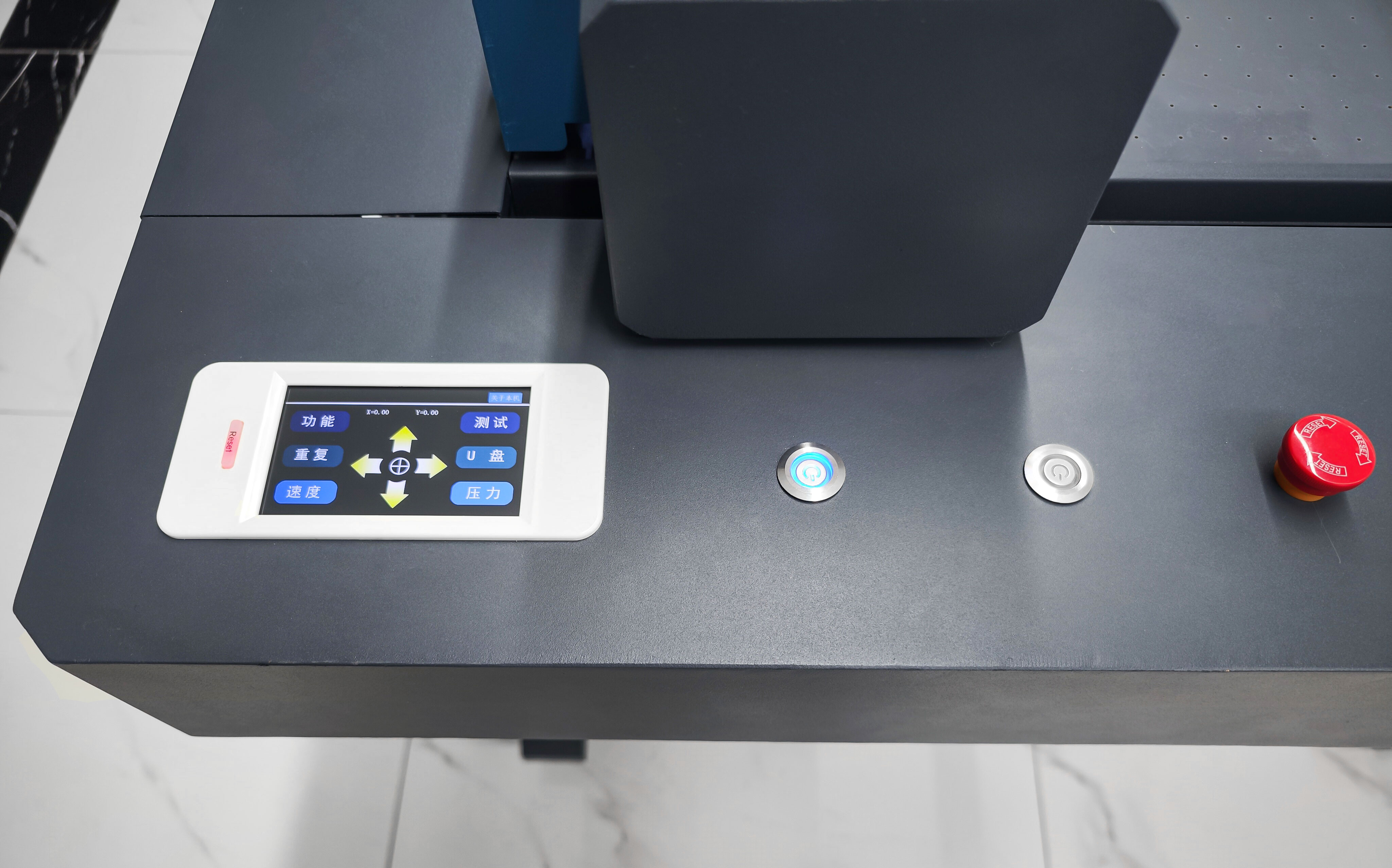

1. Full large touch screen
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job

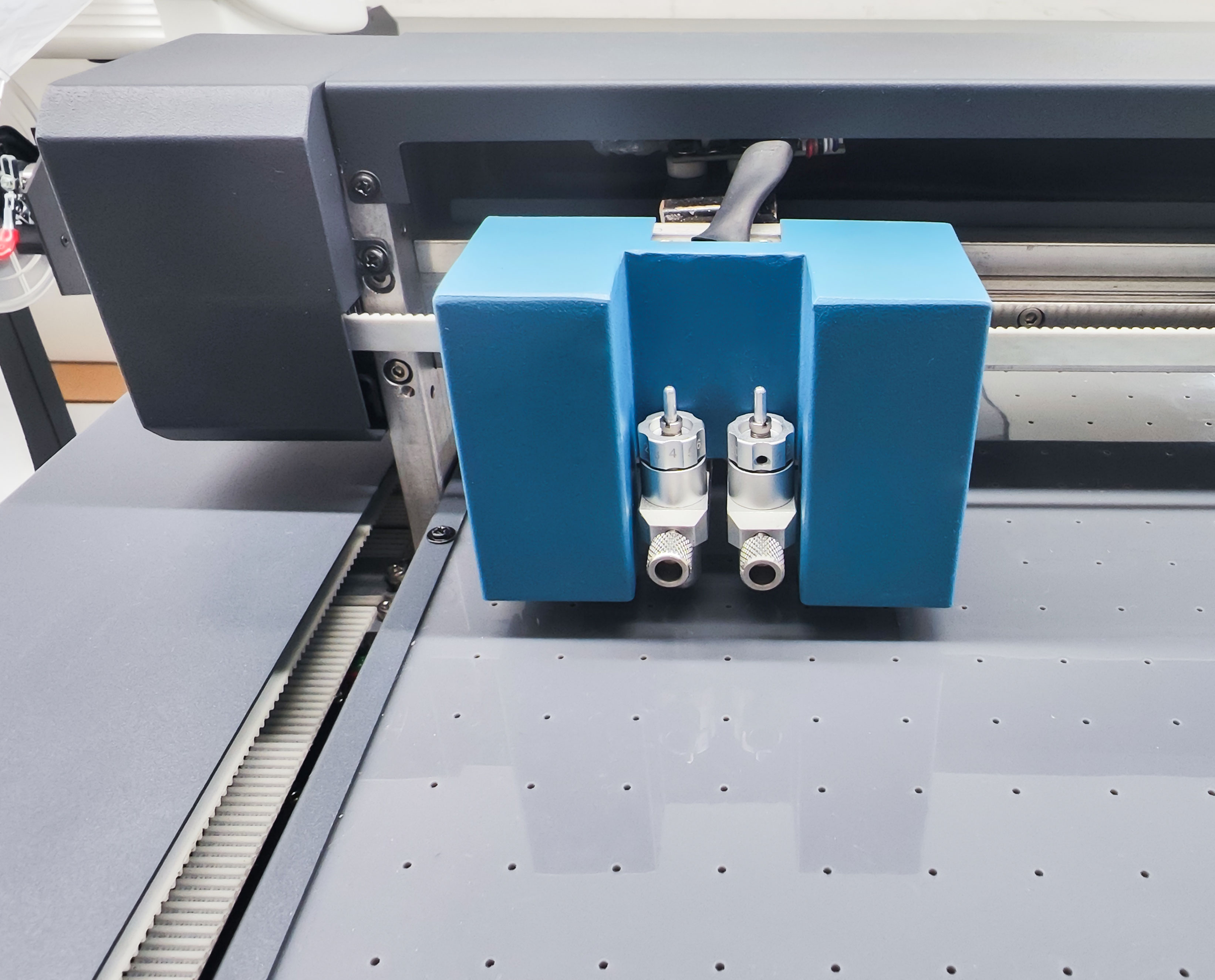

2. Double heads
(1)Multi-function,one for cutting, another for creasing. It can make gift box, vinyl material, label,DIY and so on
(2)Camera positioning tracking system,accurate and sensitive,identify cutting all kinds of shaped patterns

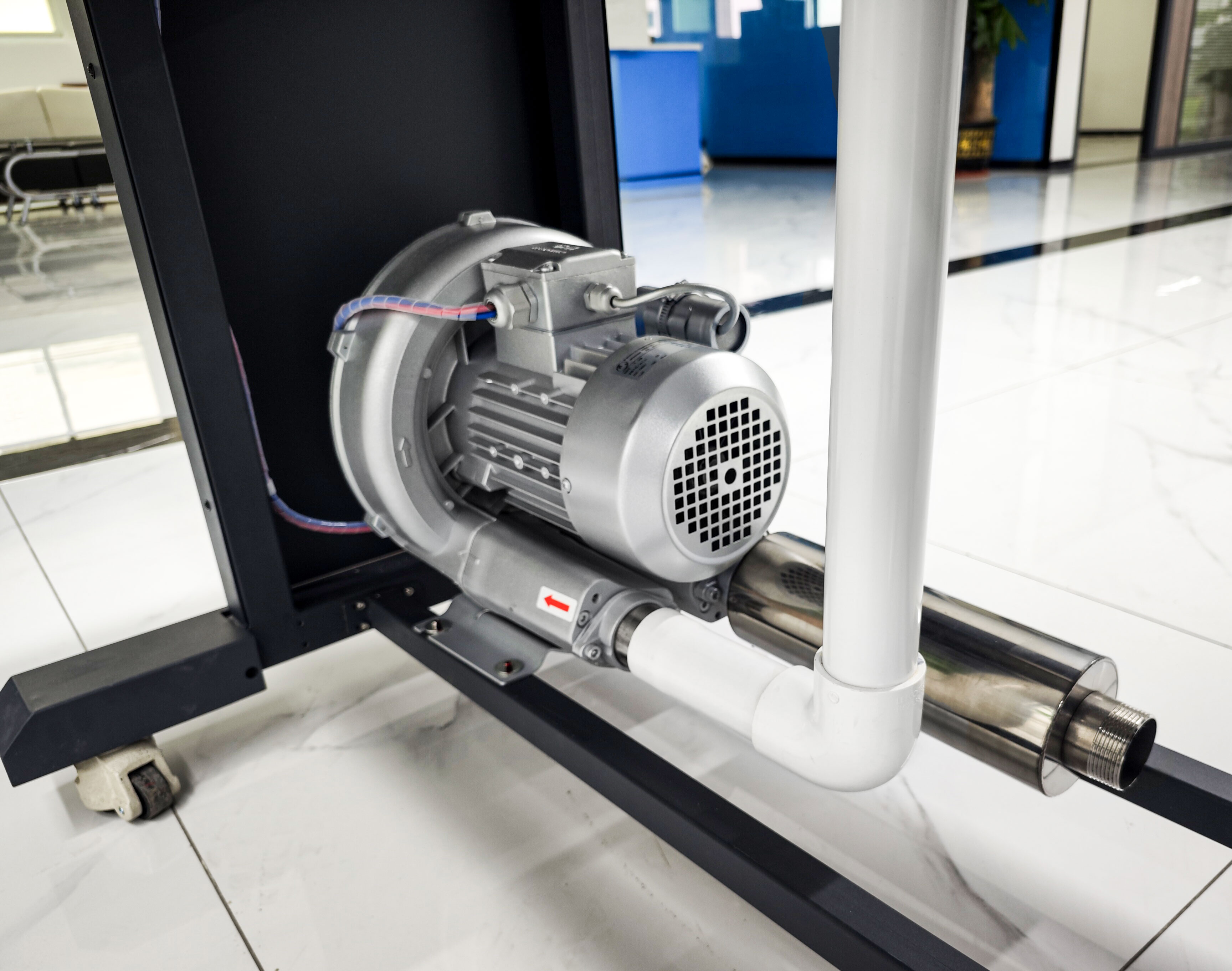

3. Vacuum pump
Patented flatbed structure design,multi-zone vacuum adsorption design,low noise,strong suction power

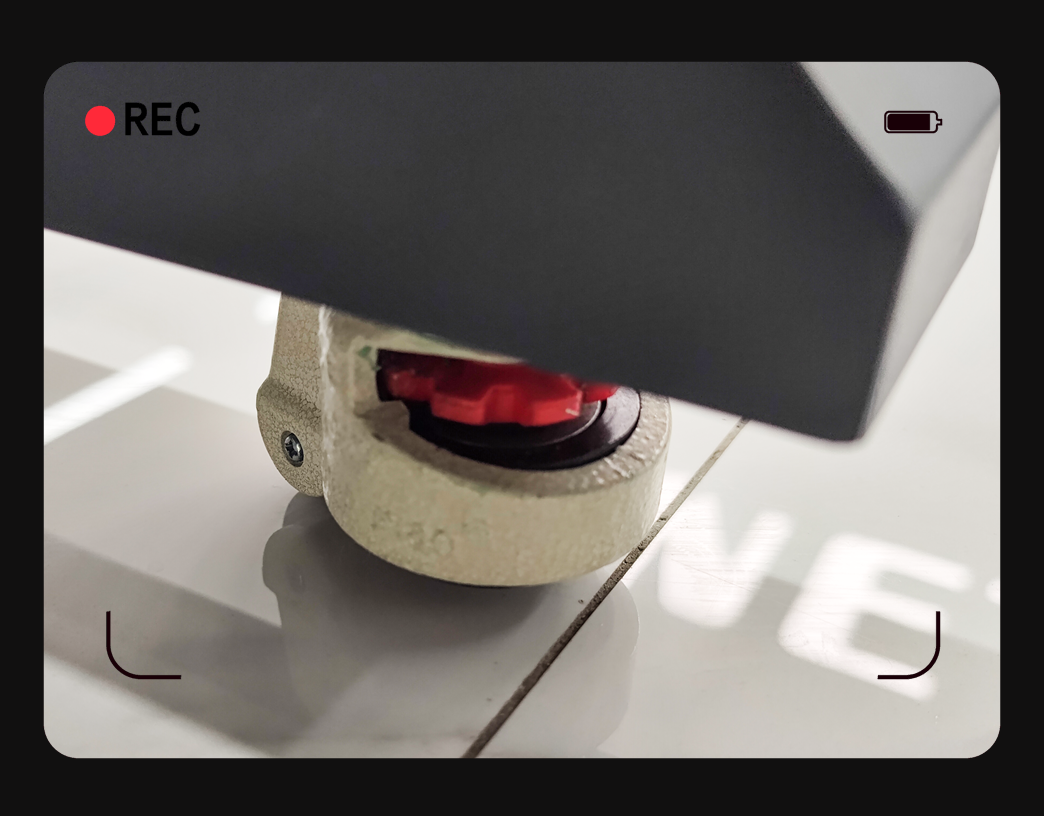

4. high quality rollers
The machine can be moved at any time
Technical Specifications
Model | FC5070E |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 500*700mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <80W |
Package size | 1180*985*920mm |
Gross weight | 150kg |
Warranty | 1 Year |
Function:
1.Adopt servo motor drive mode, with intelligent AI algorithm, to bring high quality experience for shaped cutting.
2.Camera CCD tracking, accrate and sensitive, identify cutting all kinds of shaped patterns
3.LCD touch screen, so that the vision is more beautiful, more convenient to control
4.Advanced high-end multi-axis high-speed servo motion control system developed by ourselves, accurate cutting, smooth curve,high power strength to create a shocking work
5.The fastest cutting speed is up to 1000MM/S, and cutting force is 1000G.
6. The machine can cut instant stickers,stickers,magnetic stickers, vibration blade is optional
