1.Adopting imported linear guide rail transimission, it has fast speed, high accuracy, low sound, and stable quality.
2.The independently develped ARM control system has excellent cutting effects.
3.The fastest cutting speed can each 1000mm/s.
4.Comprehensively expand various transmission interfaces, USB, USB flash drivers,(optional WIFI) to create efficient cutting experiences in different scenarios.
5.LCD HD touch screen makes the field of view more beautiful and the control more convenient
6.Compatibel with vector files such as PLT,EPS,DXF,AI,etc,widely used in clothing,shoiemaking,luggage and handbags, laser die drawing,lighting drawing and cutting in industries such as advertising gift,sticker,color box packaging, and electronics.
Advantages
1. Aluminum alloy body，different colors
① High sensitivity
② Simple use, straight forward operation
③ With multiple language
④ Powerful function as repeat - repeat cut the last job

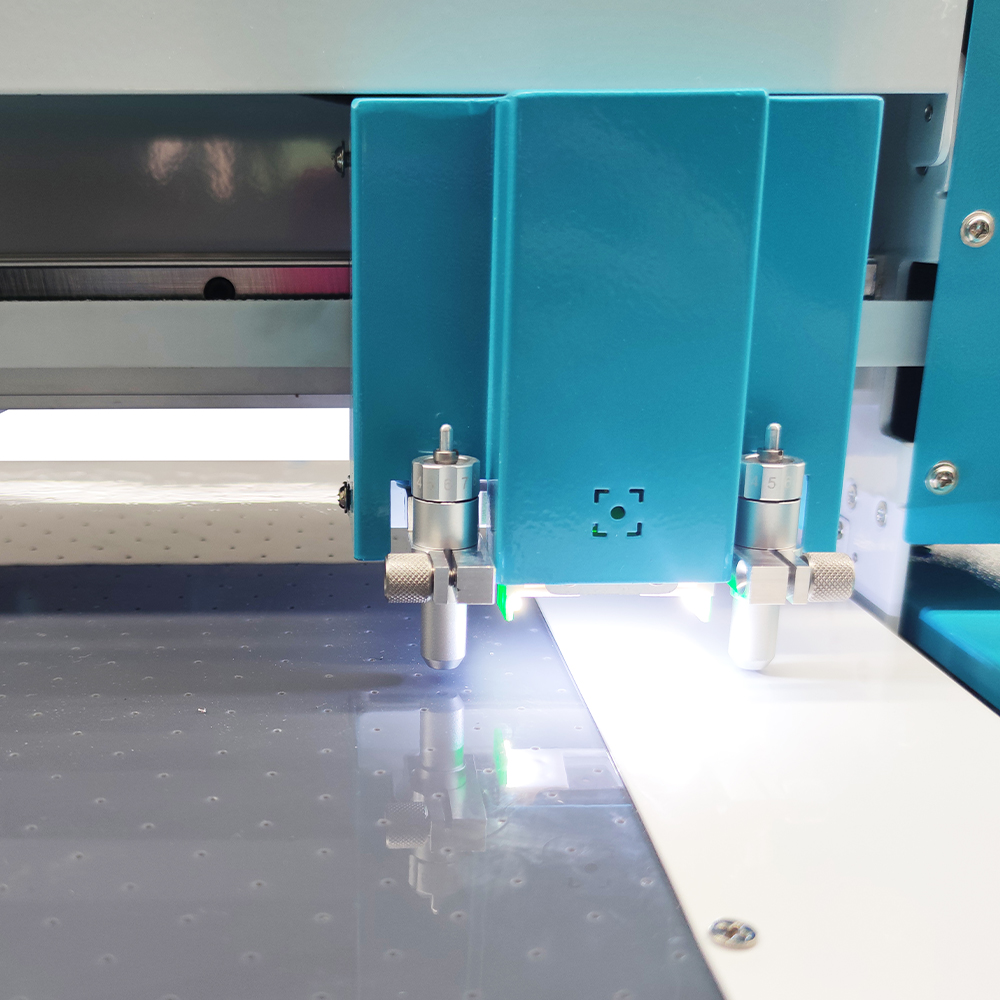

2. High precision carriage
(1)The carriage with double heads, one is for cutting, other is for cutting or creasing
(2) The machine with camera, it can scan various materials
（3）The camera can extract different files in the QR code

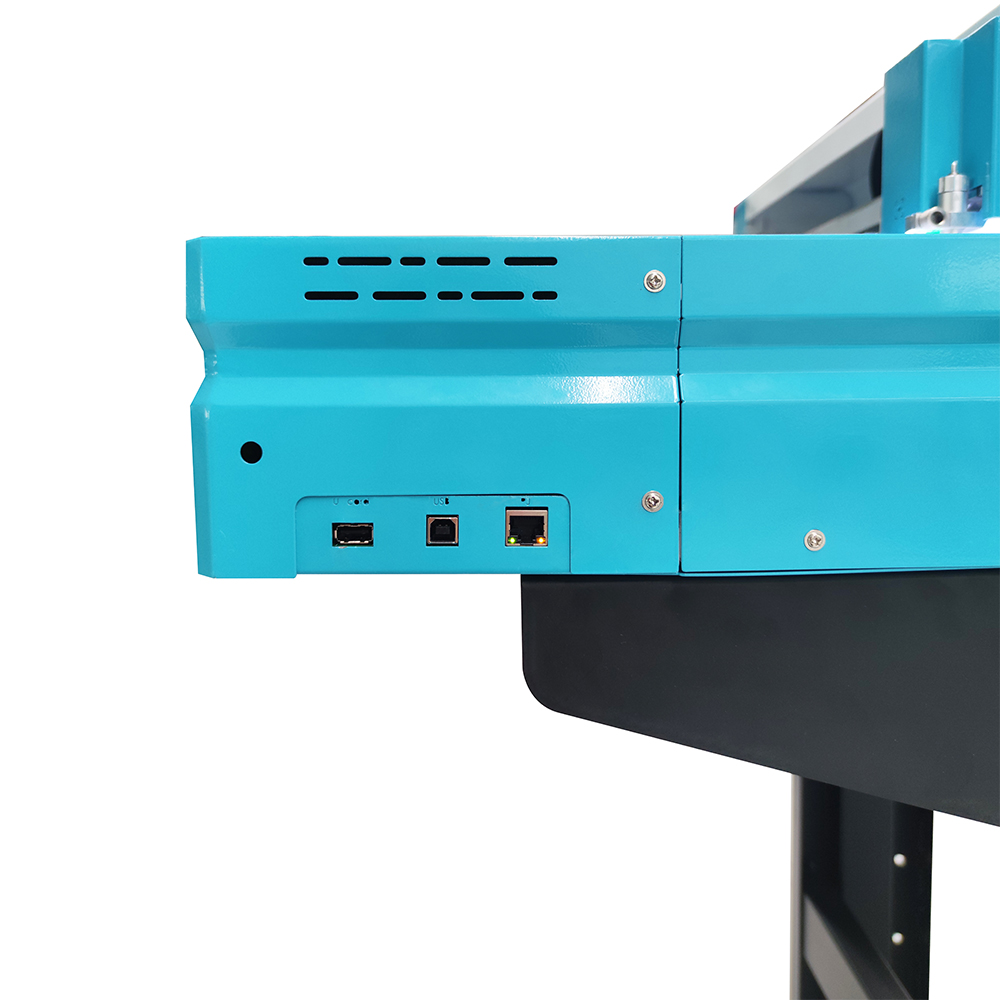

3. Multi-interface
USB cable, U disk and netport, WIFI is optional
4. vacuum adsorption
（1）No more worries about imprints on materials
（2）Can be sucked regardless of material thickness to prevent displacement
Technical Specifications
Model | FC3550E |
Control panel | 4.3 inch touch screen |
Driver | High speed, big power servo motor |
Maximum cutting area | 400*670mm |
Cutting forth | 10-1000g |
Cutting speed | 1000mm/s |
Mechanical precision | 0.025mm |
Repeatable precision | <+-0.025mm |
Plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | DM-PL/HP-GL |
Interface | USB/U disk/Serial port |
Knife | Teneth imported blade |
Power supply | AC220V, 50-60Hz |
Power consumption | <1500W |
Package size | 1114*956*710mm |
Gross weight | 150kg |
Warranty | 1 Year |
